Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX™

Upgrade your SOLIX fishing experience with the Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Transducer with Temp. This rugged transom-mount transducer delivers MEGA Imaging+ plus Dual Spectrum CHIRP sonar, giving you unmatched clarity, target separation, and depth awareness in one compact package.

MeGa Imaging+ and Dual Spectrum CHIRP

Harness the power of MEGA Imaging+ on both side and down, combined with Dual Spectrum CHIRP sonar. Full CHIRP range spans 150-220 kHz, with additional Narrow (180-240 kHz) and Wide (140-200 kHz) options for precise target detection across varying water conditions. This transducer supports maximum depth up to 1200 ft (365 m), so you’ll see the bottom structure clearly from near the surface to deep water.

MEGA Side Imaging and Down Imaging

• MEGA Side Imaging frequencies: 455 kHz (range up to 800 ft / 244 m), 800 kHz (range up to 250 ft / 76 m), and MEGA SI+ 1075-1150 kHz (range up to 400 ft / 122 m).
• MEGA Down Imaging frequencies: 455 kHz (depth up to 400 ft / 122 m), 800 kHz (depth up to 250 ft / 76 m), and MEGA DI+ 1075-1150 kHz (depth up to 200 ft / 61 m).

Premium Build and Easy Installation

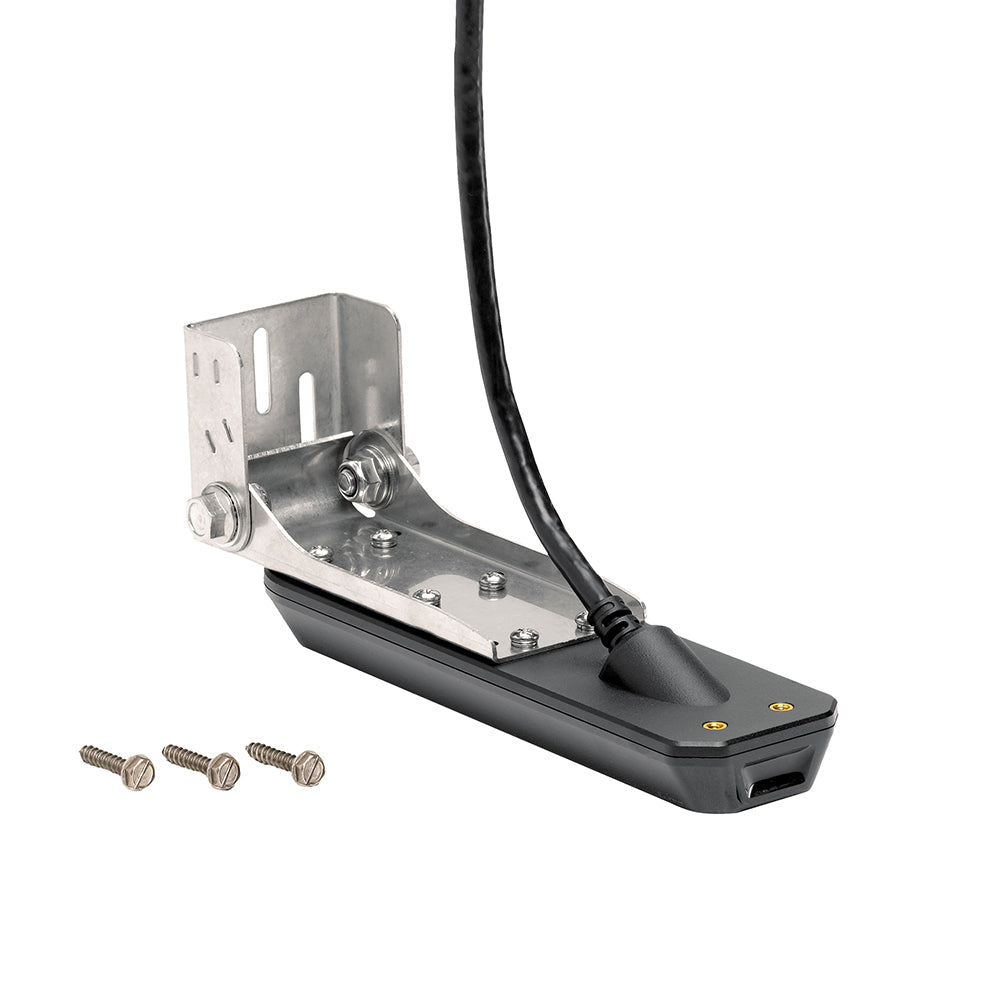

• Transom mount design: Robust and reliable mounting for your boat.
• Rugged composite housing with a durable all-metal bracket for challenging offshore conditions.

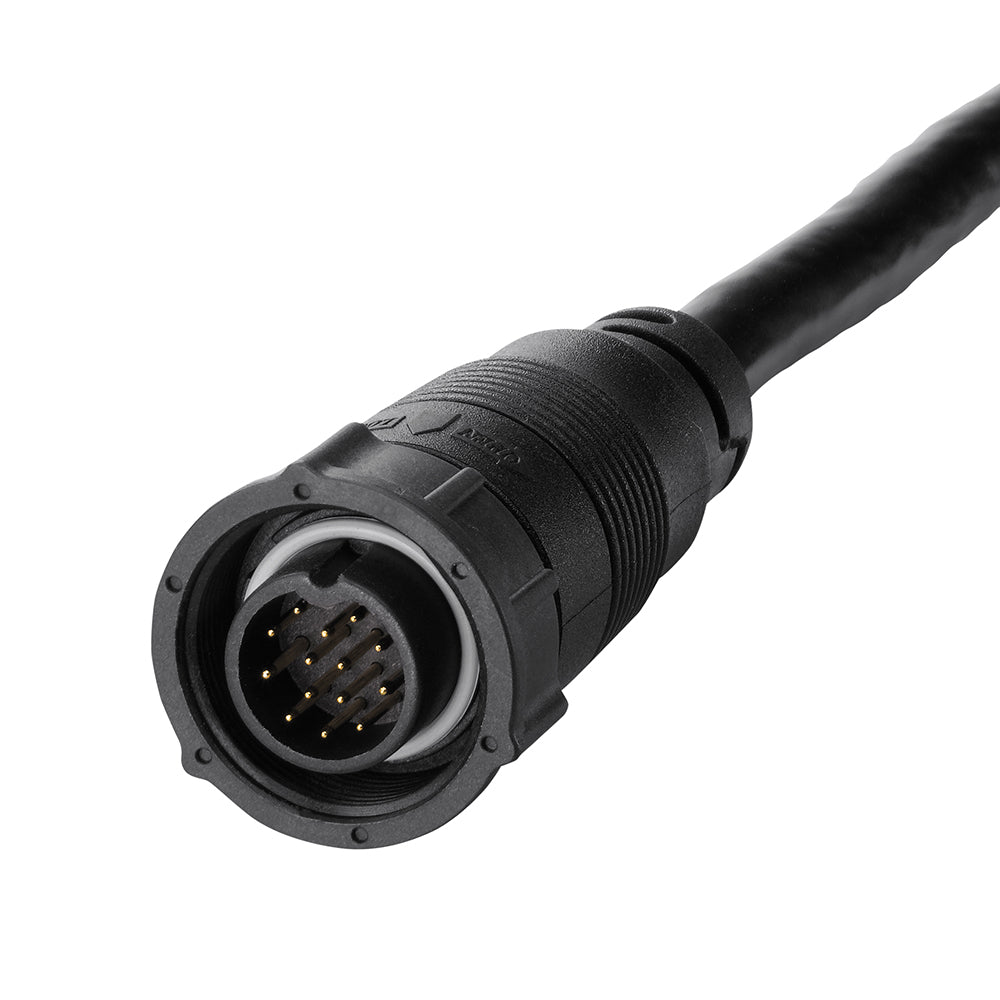

• 20 ft cable provides flexible routing and installation options.
• Built-in temperature sensor for real-time water temperature and temperature-based fish behavior insights.

Compatibility

Designed to work seamlessly with Humminbird SOLIX systems, including SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, and SOLIX 15 CHIRP MEGA SI+ GPS G2.

Enhance your navigation and fishing performance with the XM-14-HW-MSI-T, the ultimate combination of MEGA imaging, dual-spectrum CHIRP sonar, and reliable temperature data for serious anglers using SOLIX wildlife-friendly sonar technology.
