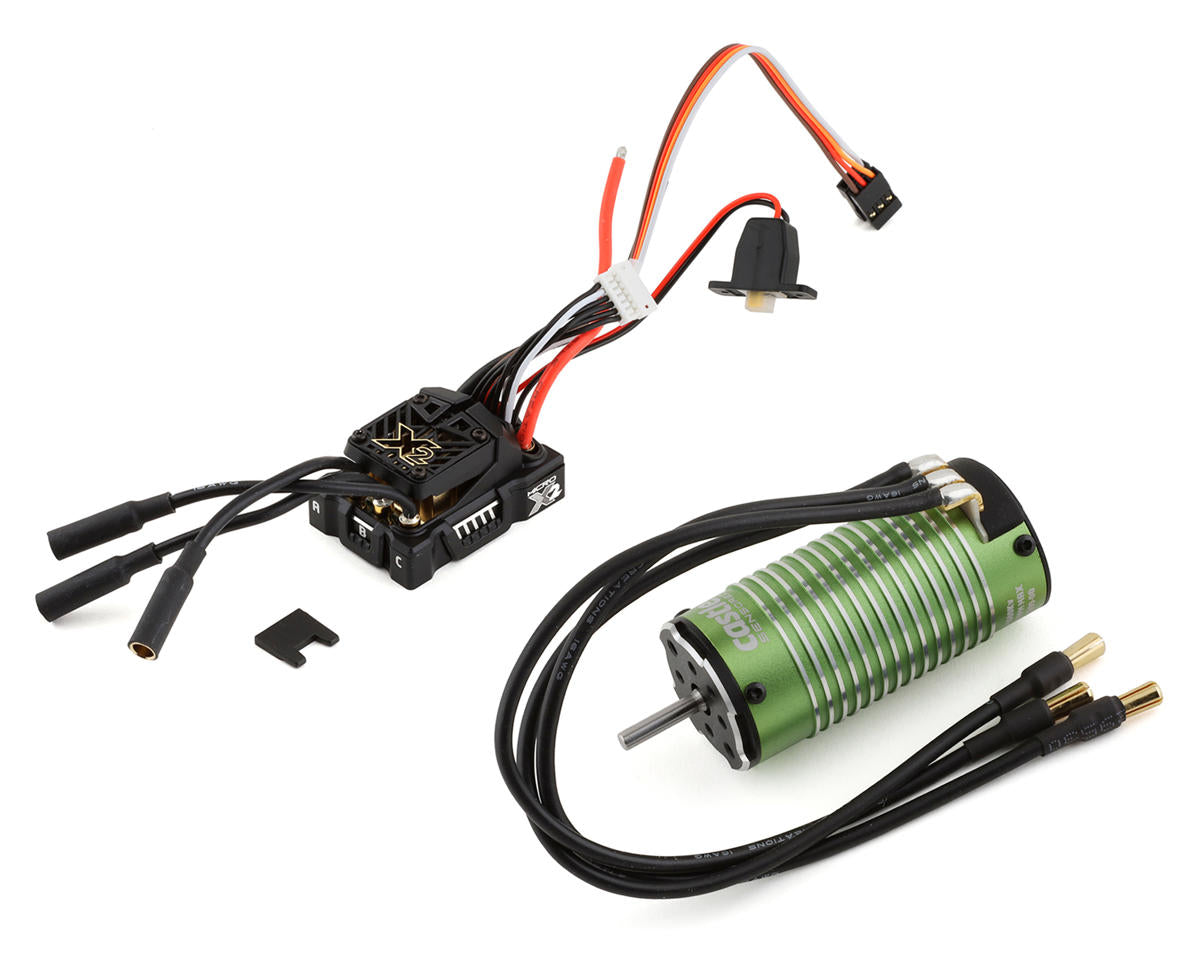

Castle Creations Mamba Micro X2 16.8V Waterproof Sensored ESC + 0808-6350kV Brushless Motor Combo for 1/18 Scale

Overview

The Castle Creations Mamba Micro X2 Combo (010-0171-06) brings serious brushless power to 1/18 scale RC. This factory-matched system pairs the waterproof, sensored Mamba Micro X2 ESC (16.8V / 4S capable) with a high-RPM 0808-6350kV brushless motor, delivering blistering speed and crisp control for small-scale racers and bashers.

The Mamba Micro X2 features Castle's CRYO-DRIVE technology for cooler, more efficient partial-throttle operation, plus full data logging for performance analysis. Sensored motor support, telemetry readiness, and auxiliary wire functionality make this one of the most feature-packed micro ESCs in the hobby.

The 0808 4-pole motor uses the same proven design Castle uses to power 15-pound monster trucks, scaled down for the 1/18 class. The result: explosive acceleration, strong torque, and excellent efficiency in a 20mm motor that's a perfect fit for 1/18 scale 2WD and 4WD vehicles up to 2.25 lbs.

Key Features

• Factory-matched ESC and motor combo for 1/18 scale
• Waterproof Mamba Micro X2 ESC, 2S-4S capable
• 0808-6350kV high-RPM brushless motor
• Sensored motor support for smooth, cog-free starts
• CRYO-DRIVE technology for cooler partial-throttle operation
• Data logging for real-time performance analysis
• Auxiliary wire for on-the-fly transmitter tuning
• Telemetry-ready (compatible with S.BUS2 Telemetry Link)
• Audible alerts for easy diagnostics
• Free Castle Link programming + B-Link Bluetooth support
• Genuine Castle Creations matched power system

Performance Benefits

• Massive RPM and acceleration for 1/18 scale builds
• Sensored startup eliminates cogging at low speed
• CRYO-DRIVE keeps the ESC cool during partial-throttle driving
• Increased input voltage (4S) over original Micro X for more power
• Data logs help fine-tune setup for max performance
• Auxiliary wire enables real-time tuning while driving

Usage Notes

• Best used with 1/18 scale 2WD and 4WD RC vehicles up to 2.25 lbs
• Compatible vehicles include: Traxxas Slash 4x4 1/16, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
• Also works in some 1/10 scale crawlers for low-speed operation (no rock racing or hill climbing)
• Use 2S-4S LiPo (4-9 cell NiMH)
• Rinse with fresh water after wet running and dry fully

Technical Specs

ESC Specifications - Mamba Micro X2

• Brand: Castle Creations
• Model: Mamba Micro X2
• ESC Type: Brushless (sensored capable)
• Input Voltage Range: 2S - 4S LiPo (up to 16.8V)
• Waterproof: Yes
• Internal BEC: Yes (units made June 2023 or later)
• Data Logging: Yes
• Telemetry Capable: Yes (S.BUS2)
• Auxiliary Wire: Yes
• B-Link Compatible: Yes
• CRYO-DRIVE: Yes

Motor Specifications - 0808-6350kV

• Brand: Castle Creations
• Motor Size: 0808 (20mm)
• KV Rating: 6350kV
• Motor Type: Brushless
• Pole Count: 4-Pole
• Connectors: 3.5mm Male Bullets (pre-installed)
• Mounting Holes: 2.5mm @ 14mm

Combo Information

• Scale Compatibility: 1/18 scale 2WD/4WD up to 2.25 lbs
• Application: Micro racing, bashing, light crawling
• Warranty: 1 year (Olathe, KS USA)
• Part Number: 010-0171-06

What's Included

• 1 x Castle Creations Mamba Micro X2 waterproof sensored ESC
• 1 x Castle Creations 0808-6350kV brushless motor
• Quick Start Guide
• Castle Decals

Fitment

Compatible Vehicles: Traxxas Slash 4x4 1/16, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.

Summary

The Mamba Micro X2 + 0808-6350kV combo turns 1/18 scale RC into a Castle-powered rocket. Sensored smoothness, 4S capability, CRYO-DRIVE cooling, and full data logging make this the most feature-rich micro power system on the market.
