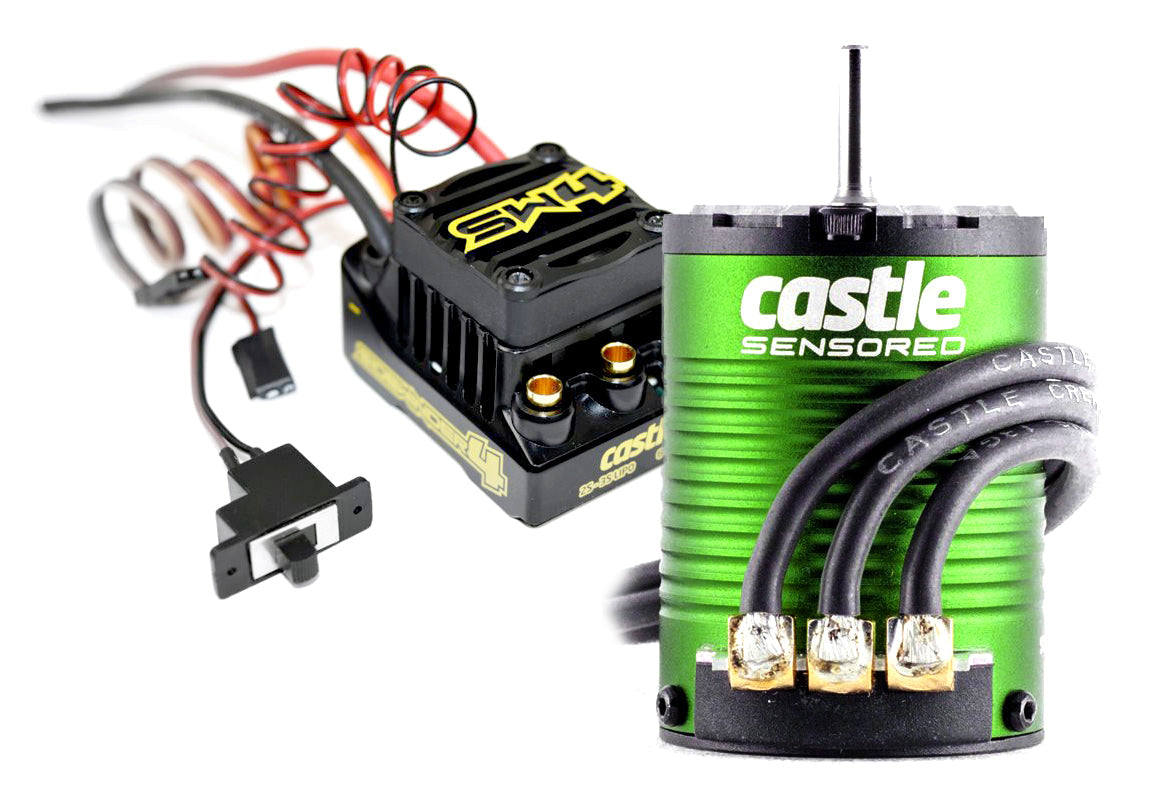

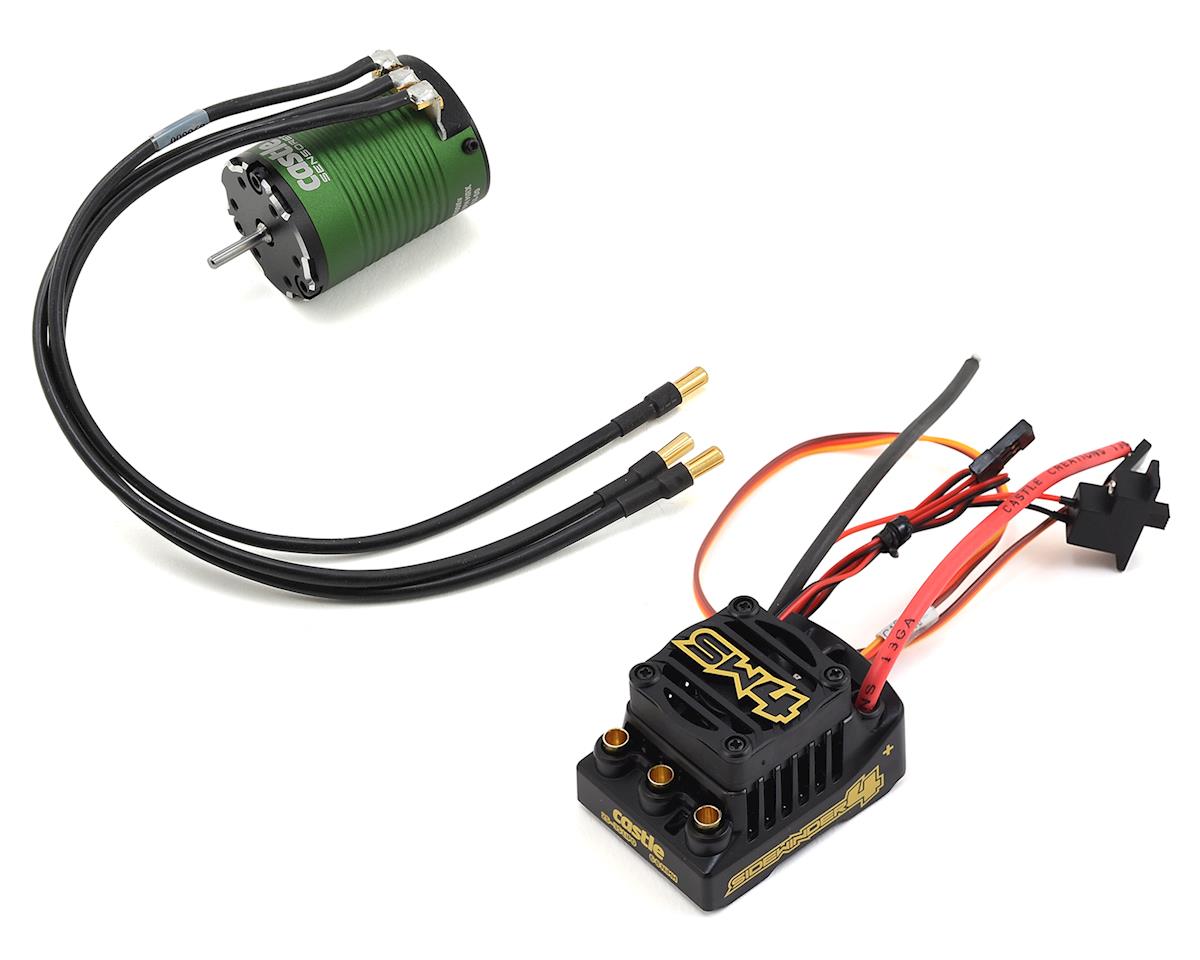

Castle Creations Sidewinder SW4 Waterproof ESC + 1406-4600kV Sensored Brushless Motor Basher Combo for 1/10 Scale

Overview

The Castle Creations Sidewinder SW4 Combo (010-0164-01) brings Castle's CRYO-DRIVE technology to one of the most popular 1/10 scale power systems. This factory-matched combo pairs the waterproof Sidewinder SW4 ESC with the 1406-4600kV sensored brushless motor, delivering balanced acceleration, refined drivability, and Castle's renowned cooler-running performance.

The Sidewinder SW4 ESC features CRYO-DRIVE - a hardware and software combination that boosts thermal performance dramatically. Cooler temps mean longer runs and more sustained power, especially during aggressive bashing or extended sessions.

The 1406-4600kV motor is excellent for 2WD short course trucks on 2S, 1/10 stadium trucks and buggies on 2S/3S, and on-road cars looking for an upgrade. The lower KV keeps temperatures manageable and runtime longer.

Key Features

• Factory-matched ESC and motor combo for 1/10 bashers
• Waterproof Sidewinder SW4 brushless ESC
• CRYO-DRIVE technology for cooler operation
• 1406-4600kV sensored brushless motor
• 2S-3S LiPo capable (6-8 cell NiMH)
• Sensorless brushless and brushed mode support
• 5.0V fixed, 2A peak BEC
• 30mm splash-resistant cooling fan
• Audible alerts for error conditions
• Castle Link programmable, transmitter programming for 6 settings
• Telemetry compatible (S.BUS2)

Performance Benefits

• CRYO-DRIVE keeps the ESC running cooler than competitors
• Smooth sensorless startups
• Enhanced drag brake functionality
• Cooler temps = longer runs and more sustained power
• Versatile across SCT, stadium truck, buggy, and on-road builds

Usage Notes

• Best used with 1/10 scale RC vehicles up to 6.5 lbs ready-to-run
• Great for 2WD SCT (2S), 2WD stadium trucks/buggies (2S/3S), on-road cars (2S/3S)
• NOT recommended for 4WD short course trucks
• Run conservative gearing on 3S for stadium trucks/buggies (temps climb quickly)
• Use 5,000mAh+ LiPo at 30C continuous discharge or higher
• Rinse with fresh water after wet running and dry fully

Technical Specs

ESC Specifications - Sidewinder SW4

• Brand: Castle Creations
• Model: Sidewinder 4 (with CRYO-DRIVE)
• Input Voltage Range: 2S-3S LiPo, 6-8 cell NiMH
• BEC: 5.0V fixed, 2A peak
• Operating Environment: Waterproof
• Brake: Proportional
• Reversible: Yes (can be disabled for racing)
• On/Off Switch: Yes
• Cooling Fan: 30mm fan included
• ESC Size: 2.08 x 1.50 x 1.28" (52.92 x 38.05 x 32.56mm)
• ESC Weight (with wires): 2.26 oz (64g)
• Connectors: 4mm female bullets
• Telemetry: Yes (S.BUS2 capable)

Motor Specifications - 1406-4600kV

• Brand: Castle Creations
• Motor Size: 1406
• KV Rating: 4600kV
• Motor Type: Sensored Brushless
• Pole Count: 4-Pole

Combo Information

• Scale Compatibility: 1/10 scale (up to 6.5 lbs RTR)
• Application: Bashing, on-road, 2WD SCT, stadium truck, buggy
• Max Vehicle Weight: 6.5 lbs ready-to-run
• Part Number: 010-0164-01

What's Included

• Castle Creations Sidewinder SW4 Waterproof Brushless ESC (with CRYO-DRIVE)
• Castle Creations 1406 Sensored Brushless Motor - 4600kV

Summary

The Sidewinder SW4 + 1406-4600kV combo brings Castle's CRYO-DRIVE technology to one of the best-selling 1/10 scale power systems. Cooler running, longer runtimes, and balanced power make it a perfect basher upgrade.
