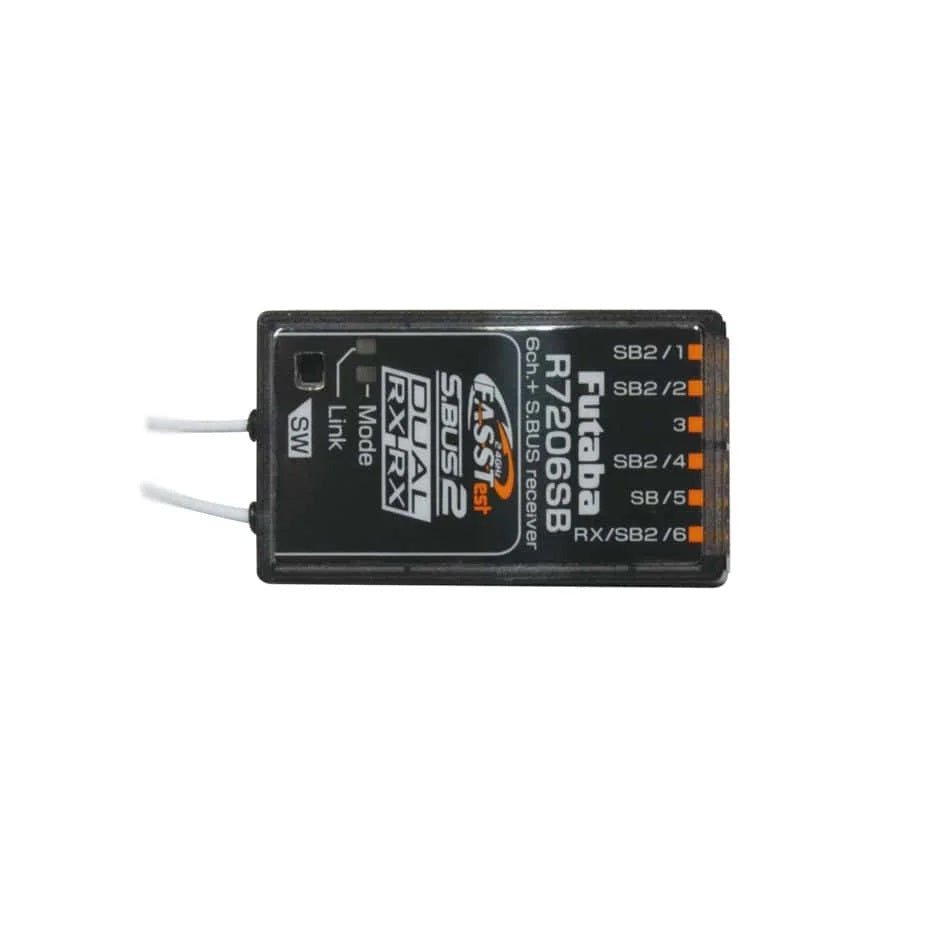

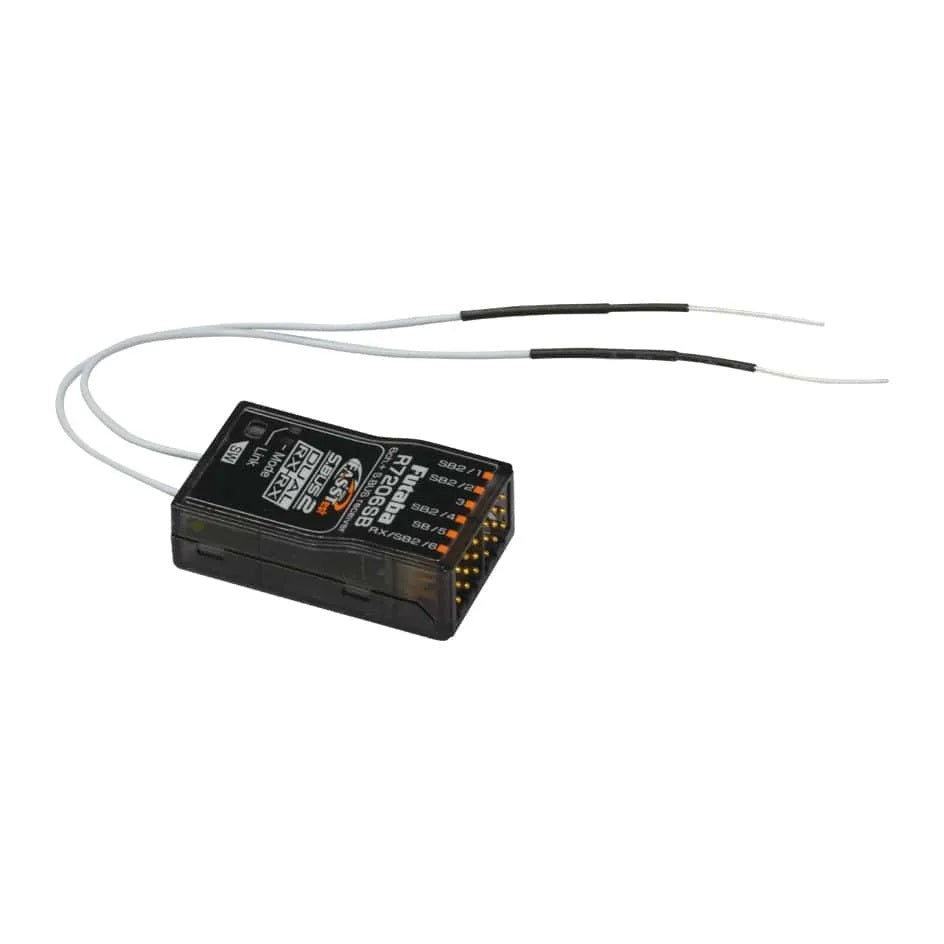

Futaba R7206SB FASSTest 6-Channel Dual Port Receiver | S.Bus2 Telemetry 2.4GHz

Overview

The Futaba R7206SB is a compact 6-channel FASSTest receiver designed for aircraft models requiring bidirectional telemetry communication. Featuring dual "L" antenna configuration and S.Bus2 support, this receiver delivers reliable signal reception and real-time data feedback to compatible FASSTest transmitters.

The compact design (22.5 × 38.3 × 12.2 mm) and light weight (8.5g) make the R7206SB ideal for smaller aircraft where space is limited but FASSTest performance is required. Wide voltage compatibility from 3.5V to 8.4V ensures compatibility with modern battery systems.

Key Features

• FASSTest 2.4GHz bidirectional communication
• 6-channel PWM output capacity
• S.Bus2 port for telemetry sensors
• Dual "L" antenna configuration
• Compact design (22.5 × 38.3 × 12.2 mm)
• Lightweight construction (8.5g)
• Wide voltage range (3.5V - 8.4V)
• Rated voltage: 3.7V - 7.4V

Performance Benefits

• Real-time telemetry data feedback
• Reliable FASSTest signal quality
• Clean installations with S.Bus2
• Minimal weight impact
• Fits in compact airframes
• Stable performance across voltage range

Usage Notes

• Designed for RC aircraft applications
• Compatible with FASSTest transmitters

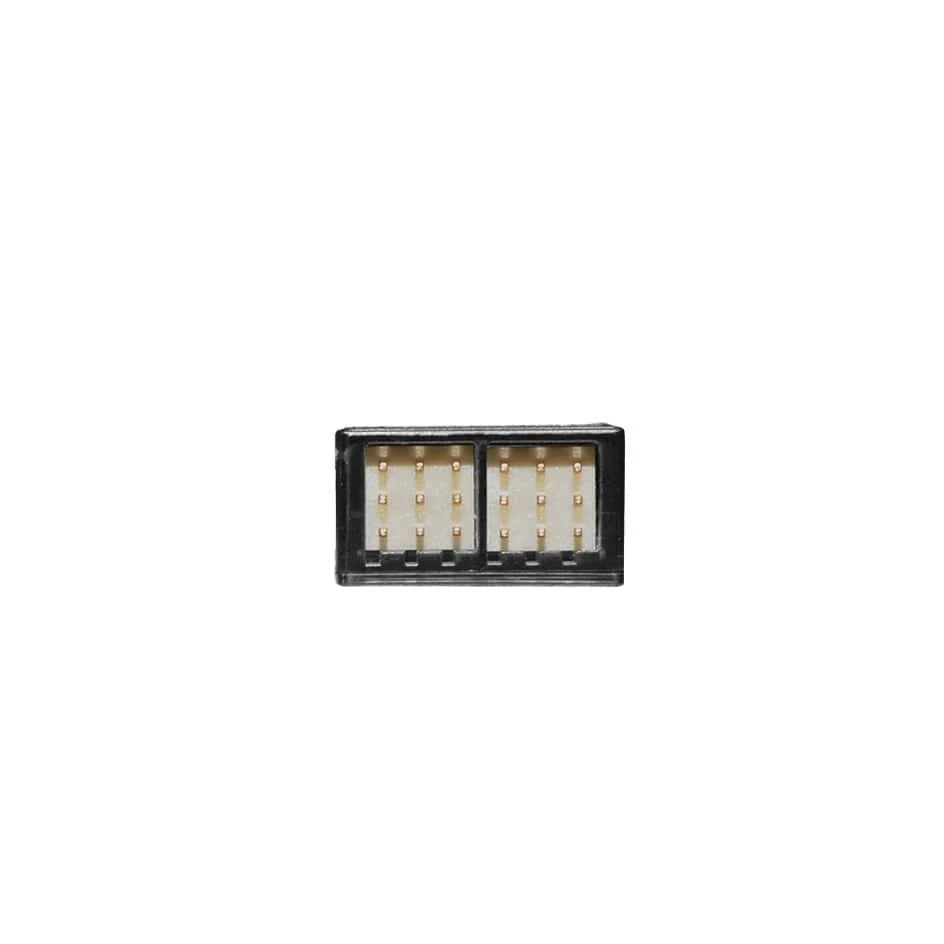

• Note: Servo/S.Bus connections oriented with Ground pin UP
• Signal wire toward bottom of receiver
• Mount securely away from vibration

Technical Specs

• Frequency: 2.4GHz
• Protocol: FASSTest
• Channels: 6
• Bus System: S.Bus2
• Telemetry: Yes (bidirectional)
• Dimensions: 22.5 × 38.3 × 12.2 mm (0.89 × 1.5 × 0.48 in)
• Weight: 8.5 g (0.30 oz)
• Rated Voltage: DC 3.7V - 7.4V
• Operating Voltage: DC 3.5V - 8.4V
• Antenna: Dual "L" configuration

What's Included

• (1) Futaba R7206SB FASSTest S.Bus2 6-Channel Receiver

Summary

• Compact 6-channel FASSTest aircraft receiver
• S.Bus2 telemetry with dual L antenna
• Lightweight 8.5g design
• Wide voltage compatibility (3.5V - 8.4V)
• Ideal for smaller FASSTest aircraft
