Futaba R9001SB AdRCSS 900MHz S.Bus Receiver | Long Range Dual Antenna Aircraft
$161.99
Reliable shipping
Flexible returns
Overview

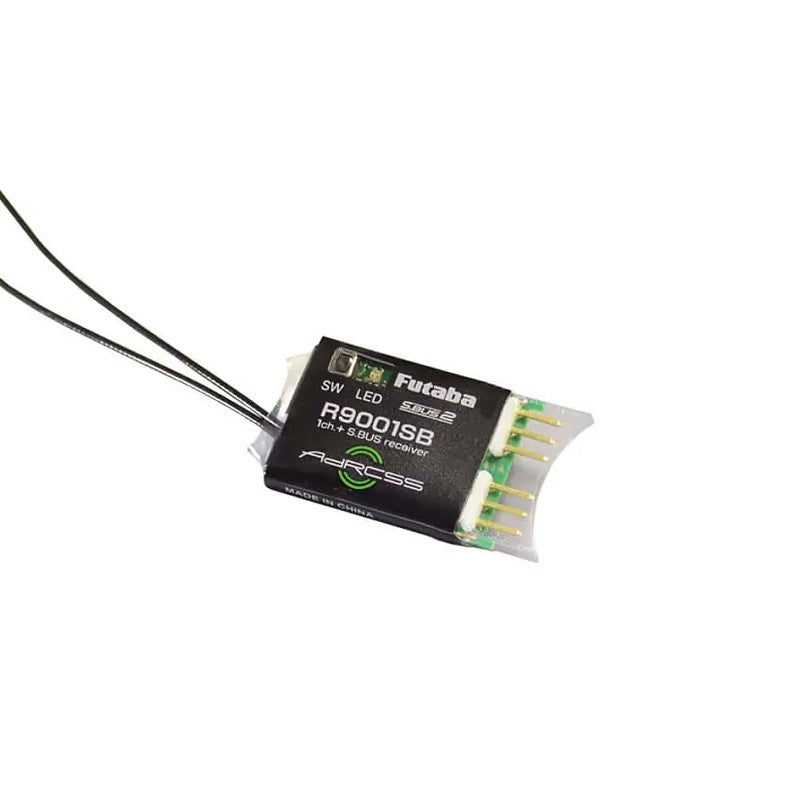

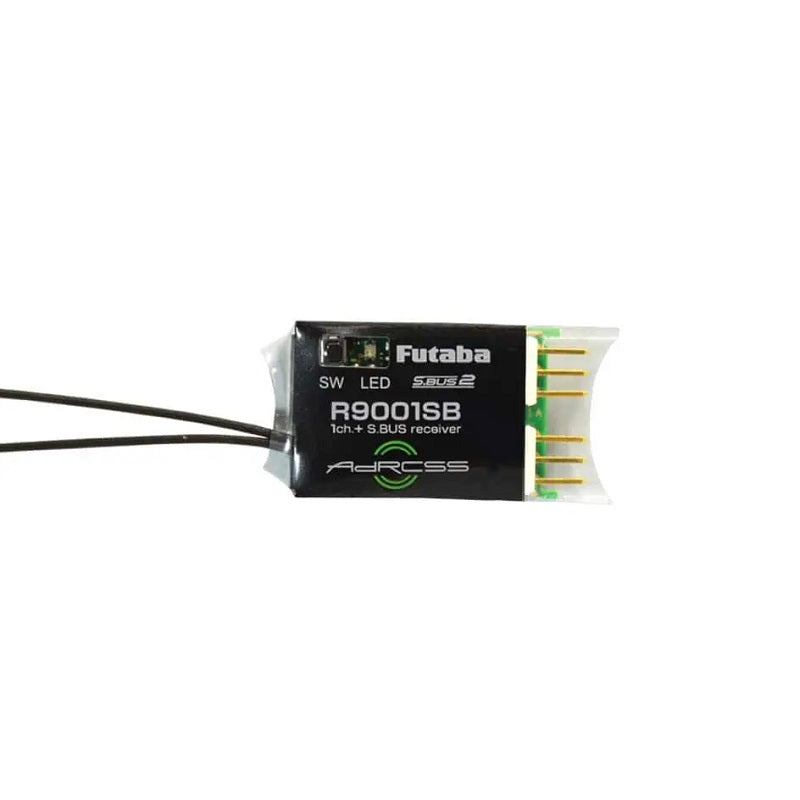

The Futaba R9001SB is a high-performance AdRCSS 900MHz S.Bus receiver designed specifically for aircraft applications requiring exceptional reliability and long-range communication. Operating on the 900MHz band with Futaba's advanced AdRCSS protocol, this receiver delivers rock-solid signal stability even in demanding environments where 2.4GHz systems may struggle.
Paired with the TM-18 RF Module, the R9001SB provides dual antenna diversity for continuous signal optimization. At just 4.2 grams with an ultra-compact 21.1 × 41.8 × 5.3 mm form factor, this receiver adds minimal weight while delivering maximum reliability for long-range aircraft and advanced platforms.
Key Features
- AdRCSS 900MHz long-range protocol
- Designed for use with TM-18 RF Module

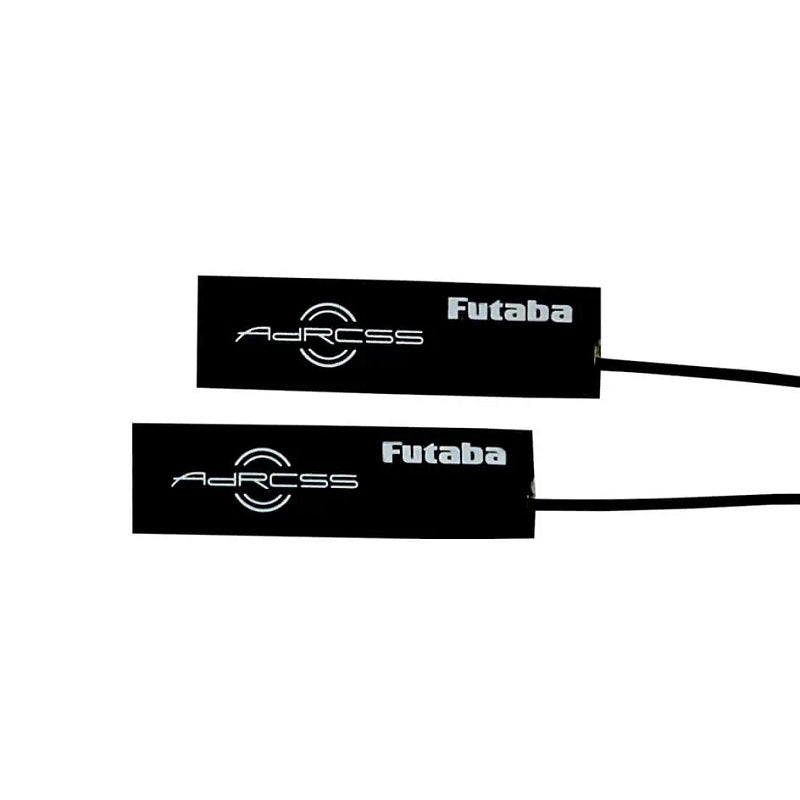

- Dual antenna diversity for optimal reception
- S.Bus output for streamlined wiring
- Ultra-compact design (21.1 × 41.8 × 5.3 mm)
- Extremely lightweight (4.2g)
- Wide operating voltage (4.8V - 7.4V)
- High interference resistance
Performance Benefits
- Extended range compared to 2.4GHz systems
- Superior signal penetration through obstacles
- Continuous dual antenna optimization
- Clean S.Bus installations with minimal wiring
- Minimal impact on aircraft balance
- Professional-grade reliability
Usage Notes
- Designed for fixed-wing aircraft
- Requires Futaba TM-18 RF Module
- Ideal for long-range and advanced air platforms
- Compatible with S.Bus peripherals
- Mount securely away from vibration
- Position antennas for optimal diversity
Technical Specs
- Frequency: 900MHz
- Protocol: AdRCSS
- Applicable System: TM-18 RF Module
- Bus System: S.Bus
- Antenna System: Dual antenna diversity
- Dimensions: 21.1 × 41.8 × 5.3 mm (0.83 × 1.65 × 0.21 in)
- Weight: 4.2 g (0.15 oz)
- Operating Voltage: DC 4.8V - 7.4V
- Battery Failsafe Voltage: 3.8V
What's Included
- (1) Futaba R9001SB AdRCSS 900MHz S.Bus Receiver
Summary
- Long-range 900MHz AdRCSS aircraft receiver
- S.Bus output with dual antenna diversity
- Ultra-light 4.2g compact design
- Requires TM-18 RF Module
- Professional reliability for advanced aircraft
