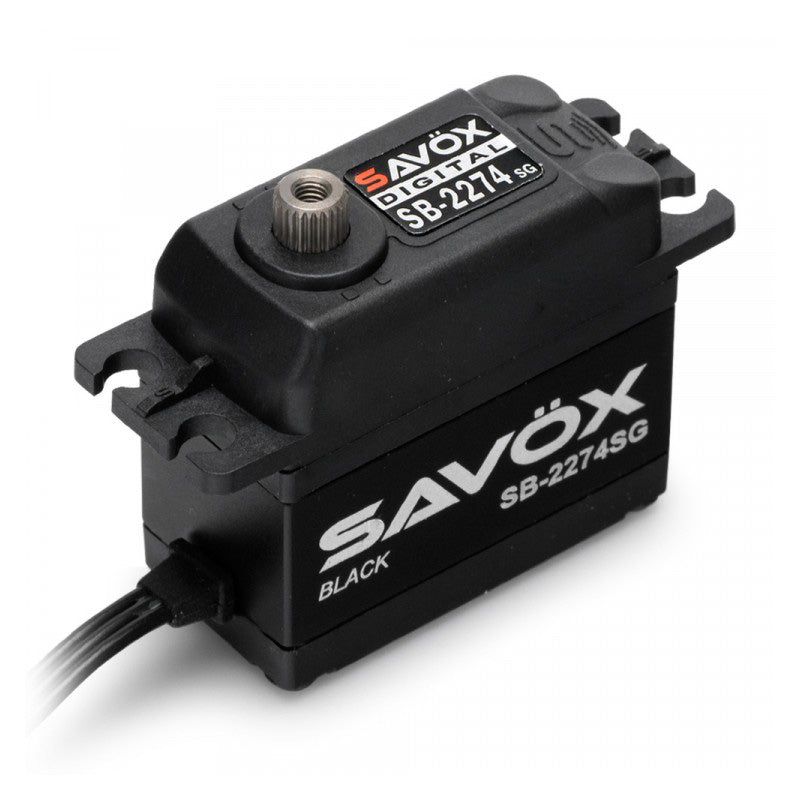

Savox SB-2274SG-BE Black Edition 1/8 & 1/10 HV Brushless Digital Servo (0.08 sec / 347 oz @ 7.4V)

Overview

The Savox SB-2274SG-BE Black Edition high-voltage brushless digital servo combines leading-edge 12-bit (4096-step) resolution with a robust steel gear train and efficient brushless motor. It's engineered for 1/10 and 1/8 buggies, as well as large scale aircraft, where precise centering and strong torque output are equally important.

Brushless operation delivers longer service life, cooler running temperatures, and reduced current draw compared with brushed servos — a significant advantage in demanding race and sport applications.

Key Features

• 12-bit (4096-step) digital resolution
• Unique steel gear train
• Brushless motor for smooth, efficient operation
• HV capable
• Sleek Black Edition finish
• Torque: 20 kg (277.7 oz) @ 6.0V · 25 kg (347.2 oz) @ 7.4V
• Speed: 0.105 sec/60° @ 6.0V · 0.08 sec/60° @ 7.4V
• Dimensions: 40.3 × 20.2 × 38.7 mm · Weight: 69 g

Applications

• 1/10 and 1/8 scale buggies
• 1/8 truggies and short course
• Large scale aircraft control surfaces
• Performance builds requiring brushless efficiency

Scale Capability

The SB-2274SG-BE is versatile across 1/10 and 1/8 scale ground vehicles where its 347 oz torque rating and 0.08 sec transit time deliver race-grade performance. The brushless motor design also makes it a smart choice for large scale aircraft, where long runtime and consistent centering are mission-critical.

Benefits

• Brushless efficiency for longer runtime
• Steel gears resist stripping under load
• 12-bit digital precision
• Stealth Black Edition styling

What's Included

• (1) Savox SB-2274SG-BE Brushless Digital Servo
• Servo horns and mounting hardware

Summary

• Black Edition 1/8 & 1/10 HV brushless digital servo
• 347 oz / 0.08 sec at 7.4V with 12-bit resolution
• Steel gears, brushless motor, 69 g weight
• Ideal for 1/10 & 1/8 buggies and large aircraft
