Savox SB2273SGP Plus 1/8 Scale HV Brushless Servo - 12-Bit | Steel Gears
$115.00
Reliable shipping
Flexible returns
Overview

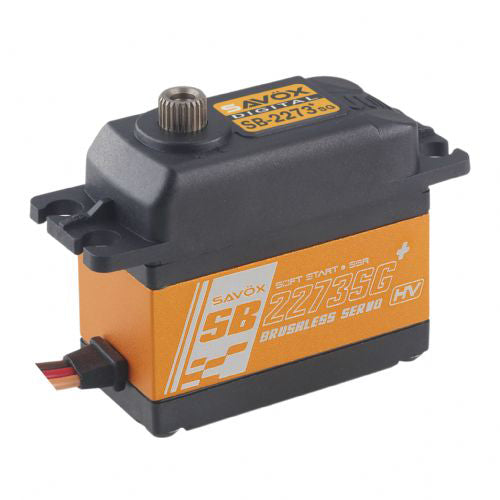

The Savox SB2273SGP Plus is a high-voltage brushless digital servo built for 1/8 scale off-road and large-scale aircraft applications. Combining leading-edge technology with ultra-high 12-bit (4096) resolution, a unique steel gear train, and a brushless motor, it delivers refined, authoritative steering control.
At 7.4V the SB2273SGP produces 28 kg-cm (388.8 oz-in) of torque with a 0.095 sec/60° response, making it a benchmark choice for serious 1/8 scale competitors.
Key Features
- Brushless motor for smooth, efficient, long-life operation
- Unique steel gear train
- 12-bit (4096) resolution for precise positioning
- HV compatibility (7.4V)
- Soft Start and Sanwa SSR compatibility
- Standard case (40.3 x 20.2 x 38.7 mm, 69g)
Performance Benefits
- Race-grade torque and response
- Fade-free brushless performance
- High-resolution digital accuracy
- Durable steel gear construction
Usage Notes
- Ideal for 1/8 scale off-road buggies and trucks
- Excellent for large-scale RC aircraft
- Perfect for performance racing builds
- Recommended for HV LiPo-powered setups
Technical Specs

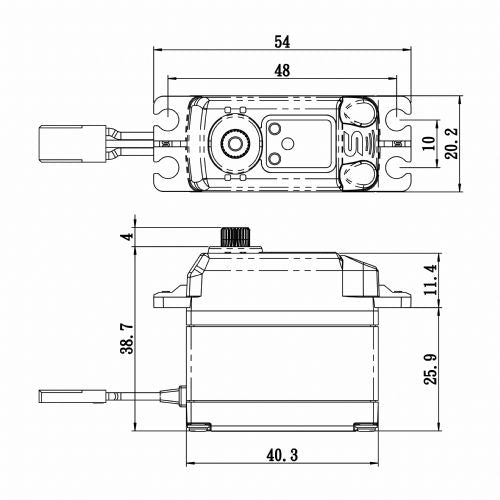

- Dimensions: 40.3 x 20.2 x 38.7 mm
- Weight: 69g
- Speed @ 7.4V: 0.095 sec/60°
- Torque @ 7.4V: 28 kg-cm (388.8 oz-in)
- Motor Type: Brushless
- Gear Type: Unique Steel
- Resolution: 12-bit (4096)
- Special Features: Soft Start, SSR Compatible
What's Included
- (1) Savox SB2273SGP Plus HV Brushless Digital Servo
- Servo horn hardware
Summary
The Savox SB2273SGP Plus delivers 12-bit HV brushless precision with steel gears for 1/8 scale performance. Trusted Savox engineering for serious competitors.
