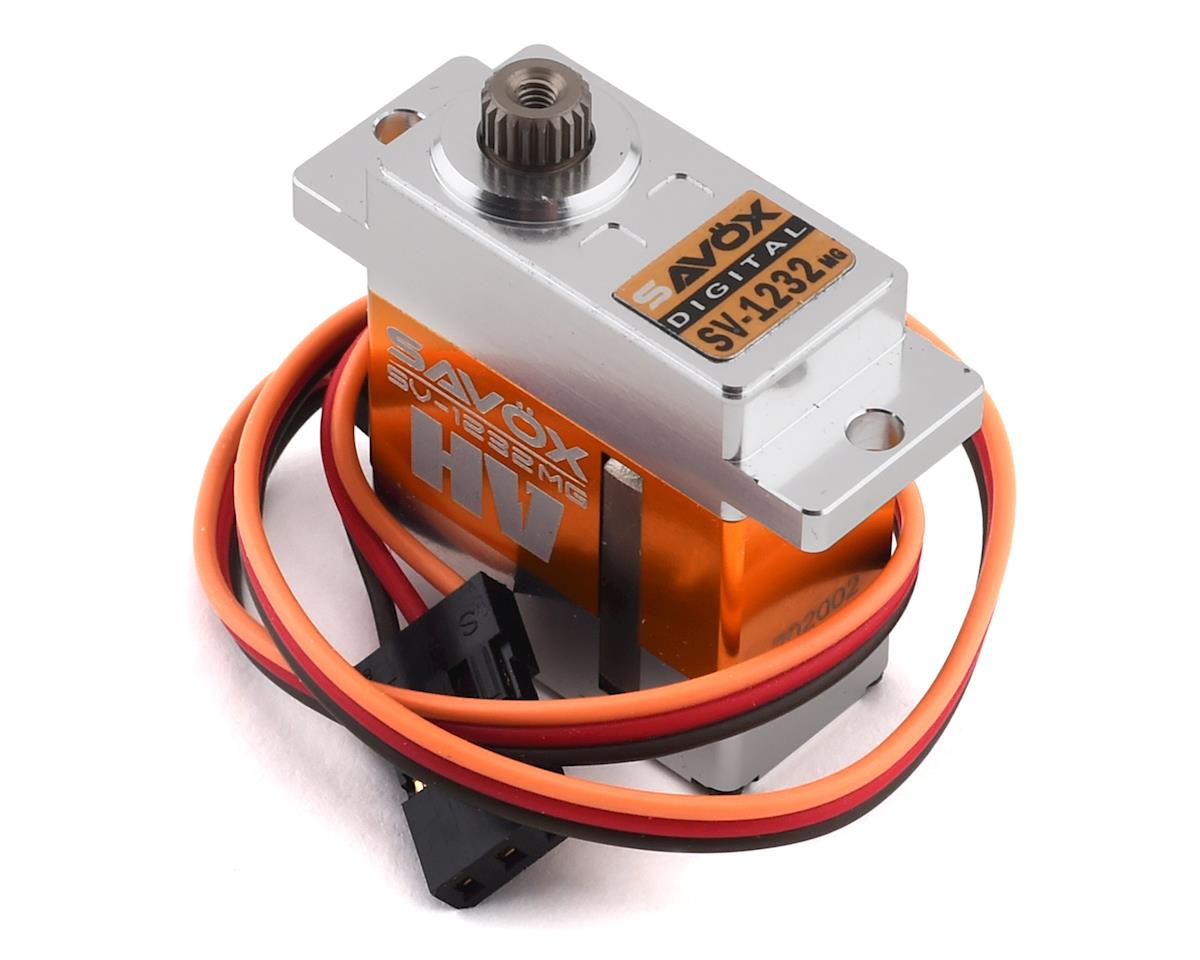

Savox SV-1232MG Digital High-Speed Micro HV Aluminum-Case Servo for 250–450 Heli (69 oz / 0.05 sec @ 7.4V)

Overview

The Savox SV-1232MG is a high-speed micro digital servo optimized for 250–450 class helicopters that benefit from extremely fast, precise micro-sized servo response. At just 0.05 sec/60° at 7.4V, it's one of the quickest micro servos available — ideal for swashplate and control surface actuation.

A full aluminum case keeps operating temperatures low under repetitive heli cyclic loads, while a metal gear train ensures long service life and 2S LiPo compatibility unlocks peak HV performance.

Key Features

• High-speed micro digital servo
• Full aluminum case for heat management
• Metal gear train for durability
• HV (7.4V / 2S LiPo) capable
• Extremely fast response
• Torque 4 kg (55.5 oz) @ 6V · 5 kg (69.4 oz) @ 7.4V
• Speed 0.06 sec @ 6V · 0.05 sec @ 7.4V
• 23 g · 23 × 12 × 27.3 mm

Applications

• 250–450 class helicopter cyclic/swashplate
• Micro aircraft control surfaces
• Small 3D planes and gliders
• Specialty micro RC applications

Scale Capability

The SV-1232MG is engineered for 250–450 class electric helicopters and other micro RC aircraft where rapid, precise servo response is critical. Aluminum case and metal gears provide the durability needed for sustained heli flight, while the compact 23 g weight keeps the aircraft lively.

Benefits

• Ultra-fast 0.05 sec response time
• Aluminum case for cooler operation
• Metal gears for long service life
• HV-ready for 2S LiPo operation

What's Included

• (1) Savox SV-1232MG High-Speed Micro HV Servo
• Servo horns and mounting hardware

Summary

• High-speed HV micro digital servo
• 69 oz / 0.05 sec at 7.4V
• Aluminum case with metal gear train
• Ideal for 250–450 heli swashplate and micro aircraft
