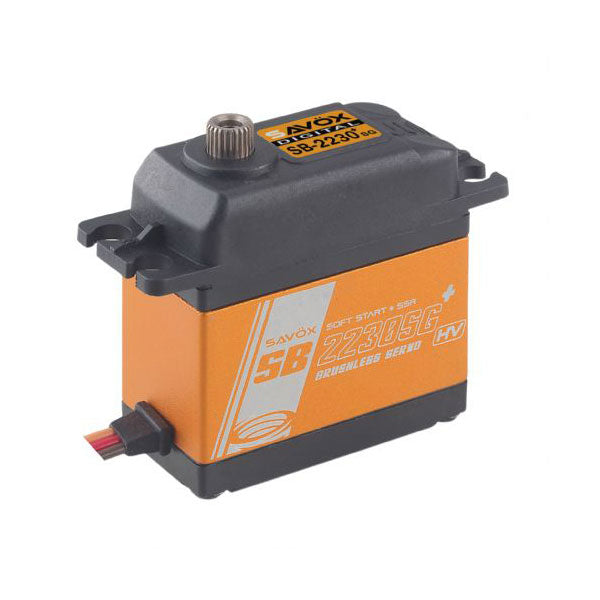

Savox SB2230SGP Plus HV Brushless Monster Torque Servo - 55 kg-cm | Large-Scale
$142.00
Reliable shipping
Flexible returns
Overview
The Savox SB2230SGP Plus is a monster torque HV brushless servo housed in a slightly taller large-scale case. With unique steel gears built to accommodate its massive output, it delivers the authoritative power needed for giant-scale aircraft, monster trucks, and 1/8 scale off-road vehicles.
At 8.4V the SB2230SGP produces an incredible 55 kg-cm (763.8 oz-in) of torque with a 0.11 sec/60° response, representing benchmark performance for heavy-duty RC applications.
Key Features
- Brushless motor for long life and cooler operating temps
- Extremely strong unique steel gears
- Taller large-scale case design (40.3 x 20.2 x 44.9 mm, 84g)
- HV compatibility up to 8.4V
- Soft Start and Sanwa SSR support
- Monster torque: 55 kg-cm @ 8.4V
Performance Benefits
- Benchmark 55 kg-cm torque for extreme loads
- Fade-free brushless performance
- Bulletproof steel gear durability
- HV compatibility for maximum output
Usage Notes
- Ideal for giant-scale RC aircraft
- Excellent for monster trucks and large bashers
- Perfect for 1/8 scale off-road buggies and trucks
- Recommended for heavy-duty steering builds
Technical Specs
- Dimensions: 40.3 x 20.2 x 44.9 mm
- Weight: 84g
- Speed @ 8.4V: 0.11 sec/60°
- Torque @ 8.4V: 55 kg-cm (763.8 oz-in)
- Motor Type: Brushless
- Gear Type: Unique Steel
- Form Factor: Large-Scale Case
- Special Features: Soft Start, SSR Compatible
What's Included
- (1) Savox SB2230SGP Plus HV Brushless Monster Torque Servo
- Servo horn hardware
Summary
The Savox SB2230SGP Plus delivers monster 55 kg-cm brushless torque in a large-scale case with steel gears. Premium power for extreme RC builds.
