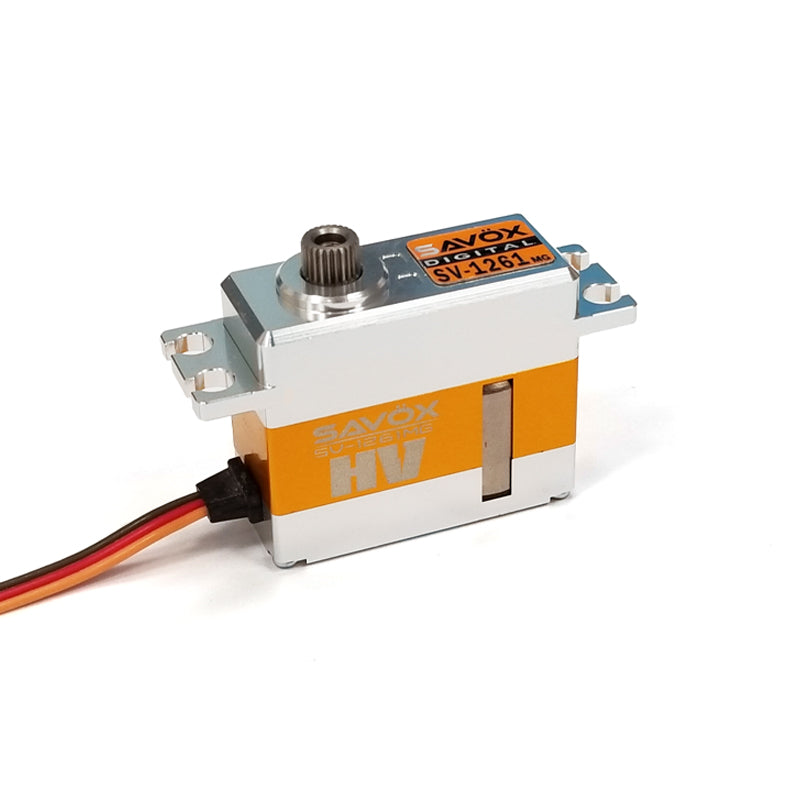

Savox SV-1261MG Mini Size High-Torque HV Digital Servo (277 oz / 0.095 sec @ 7.4V)
$99.95
Reliable shipping
Flexible returns
Overview
The Savox SV-1261MG is a mini-size, high-torque, high-voltage digital servo engineered to deliver exceptional power while maintaining fast response times. Building on the proven SV-1260MG platform, the SV-1261MG significantly increases output to a massive 20 kg (277 oz-in) of torque at 7.4V — while retaining an impressive 0.095 sec/60° transit speed.
A full aluminum case, high-strength metal gear train, and direct 2S LiPo operation make it a premium choice for demanding aircraft applications as well as specialty RC cars, boats, and compact high-load steering.
Key Features
- Mini-size high-voltage digital servo
- Full aluminum case for heat dissipation
- High-strength metal gear train
- Direct 7.4V (2S LiPo) operation
- Fast 0.095 sec/60° transit speed
- Genuine Savox digital performance
- Torque: 20 kg (277 oz) @ 7.4V
- Dimensions 35 × 15 × 30.7 mm · Weight 40 g
Applications
- Aircraft control surfaces — ailerons, elevators, rudders
- 450–500 class helicopter tail applications
- High-load mini steering for specialty RC cars
- RC boats requiring compact high-torque servos
Scale Capability
The SV-1261MG delivers full-size torque in a mini footprint, making it ideal for mid-size aircraft where weight and space are at a premium, as well as 1/12 and 1/18 scale ground vehicles that benefit from its compact form factor. Its 277 oz torque rating is extraordinary for a mini servo.
Benefits
- Massive 277 oz torque in a mini form factor
- Fast 0.095 sec response time
- HV-ready for direct 2S LiPo power
- Aluminum case for superior heat management
What's Included
- (1) Savox SV-1261MG Mini HV Digital Servo
- Servo horns and mounting hardware
Summary
- Mini high-torque HV digital servo
- 277 oz / 0.095 sec at 7.4V
- Full aluminum case with metal gears
- Ideal for mid aircraft, heli tail, and compact steering
