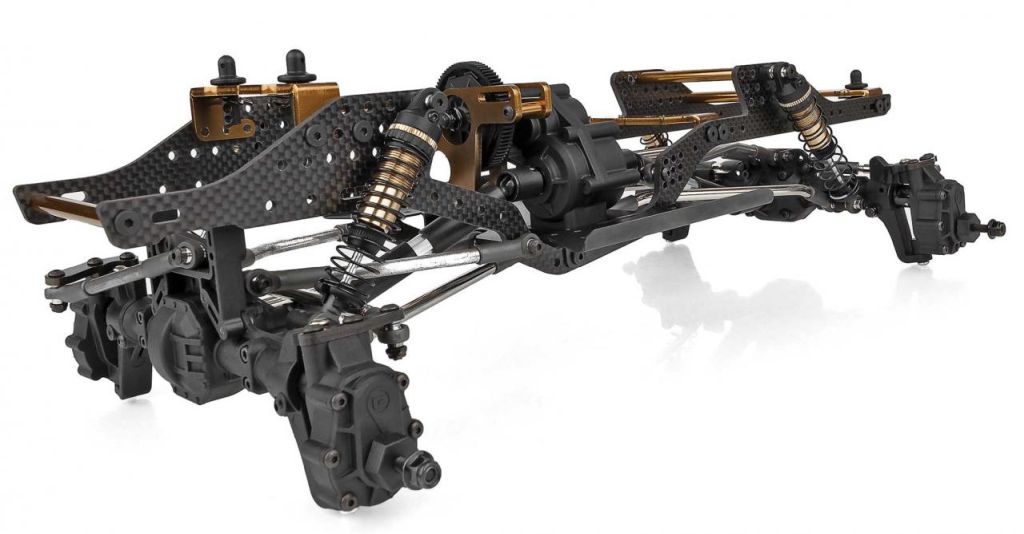

Team Associated Enduro Comp Fox 1/10 4WD Competition Rock Crawler Kit

Overview

The Team Associated Enduro Comp Fox 1/10 4WD Competition Rock Crawler Kit is the ultimate platform for serious competitive RC crawling. Engineered from the ground up for gate-to-gate competition performance, this kit features a lightweight carbon fiber flat rail chassis held together by precision-machined aluminum braces, creating an exceptionally rigid yet lightweight foundation that keeps the center of gravity low.

Designed with input from top competition crawlers, the Enduro Comp Fox delivers endless suspension tuning possibilities through multiple shock and link mounting positions. The innovative high-clearance portal axles provide nearly an inch more ground clearance than standard straight axles, allowing you to navigate obstacles that would stop lesser rigs. This is a true competition-focused crawler built to dominate every course.

Key Features

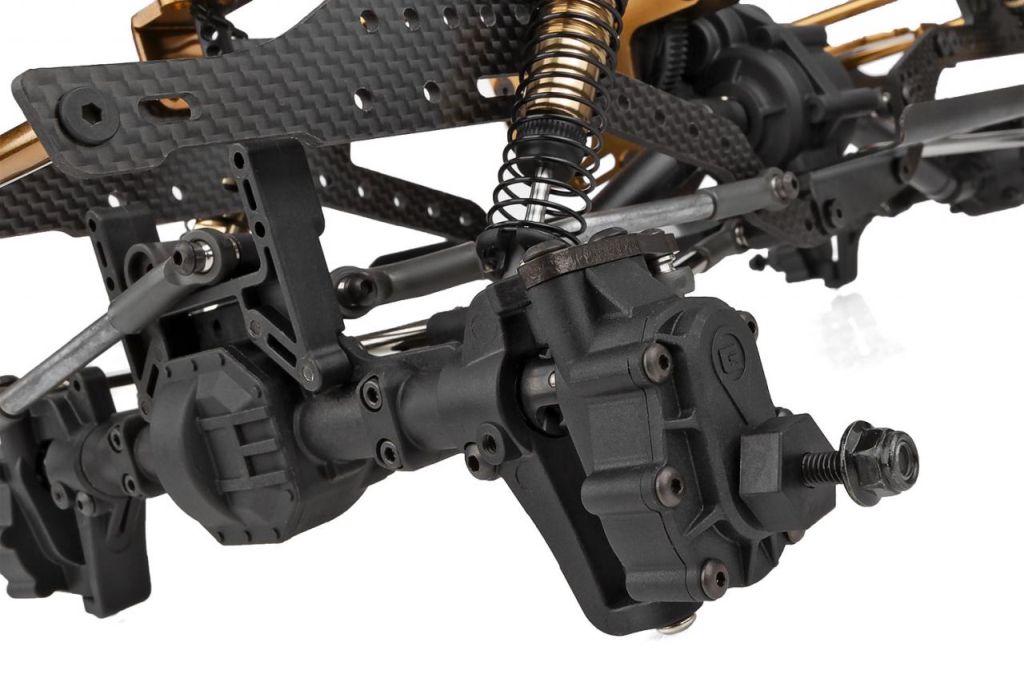

• NEW high-clearance portal axles with all-metal gears and ball bearings
• NEW carbon fiber flat rail chassis for lightweight rigidity
• NEW aluminum chassis braces and body mount supports
• NEW Delrin machined 8° angled lower skid plate
• NEW 2-piece forward-bias aluminum motor plate for 60/40 weight distribution

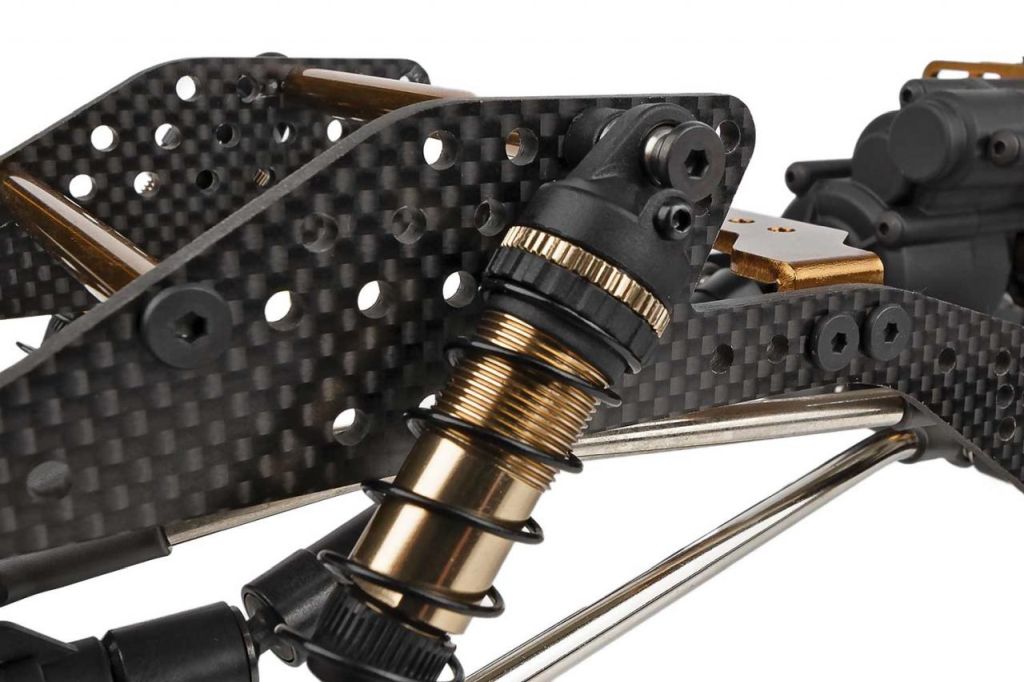

• Factory Team aluminum threaded shocks
• Factory Team steel pivot balls
• Factory Team 5mm heavy-duty steel high-clearance links

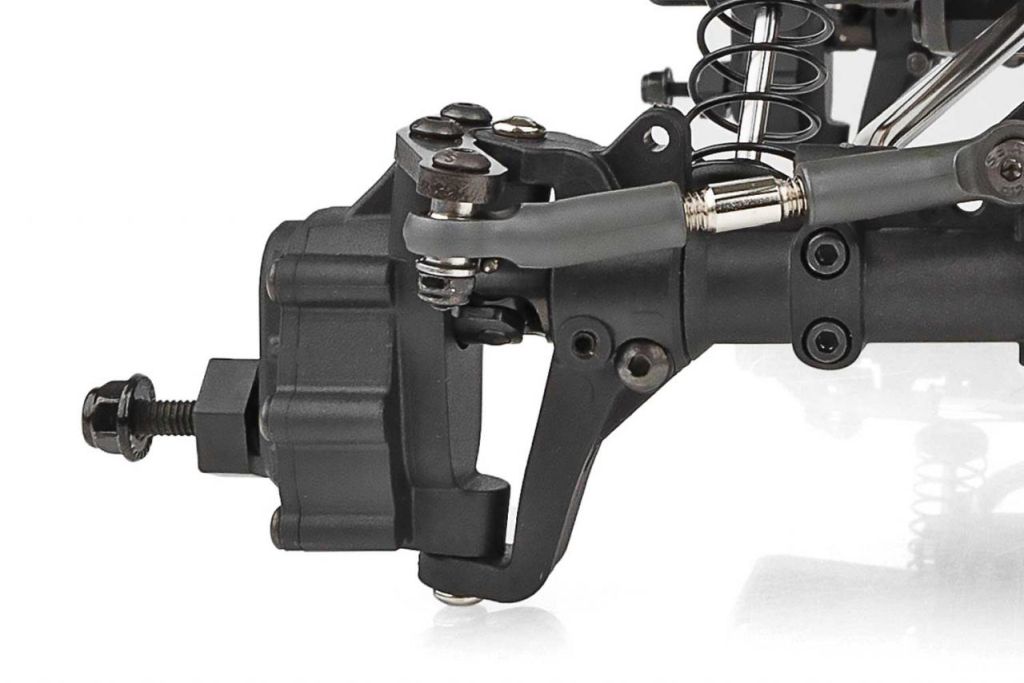

• Servo-on-axle steering for precise control
• Stealth X transmission with overdrive gears
• Universal front and rear drive axles
• Telescopic driveshafts front and rear
• Metal ball bearings included throughout

Performance Benefits

• Nearly 1 inch more ground clearance than standard straight axles
• Low center of gravity for superior stability on technical terrain
• Optimized 60/40 front-to-rear weight distribution
• Endless suspension tuning options for any course condition
• Improved breakover angle with angled skid plate
• Smooth axle articulation with optimized ball cups

Usage Notes

• Designed for competitive RC rock crawling events
• 1/10 scale platform compatible with standard crawler electronics
• Ideal for technical trail and competition courses
• Requires 1.9" wheels, tires, and 322mm wheelbase body

Technical Specs

• Brand: Team Associated / Element RC
• Part Number: 40129
• Scale: 1/10
• Drive: 4WD
• Power Source: Electric
• Length: 410mm (16.14 in)
• Width: 230mm (9.06 in)
• Wheelbase: 322mm (12.68 in)
• Weight (without electronics): 1190g (2.62 lbs)
• Terrain: Off-Road / Rock Crawling
• Assembly Level: Kit

What's Included

• (1) Enduro Comp Fox 1/10 Rock Crawler Kit
• (2) High-clearance portal axles
• (4) Factory Team aluminum threaded shocks
• (2) Carbon fiber chassis rails
• (1) Stealth X transmission
• All required hardware and assembly components

Needed to Complete

• (1) 540-size brushed or brushless motor
• (1) Electronic Speed Control (ESC)
• (1) Standard-size steering servo
• (1) 2+ channel radio system (transmitter and receiver)
• (1) 7.2V-7.4V battery (2S LiPo or 6-cell NiMH)
• (1) Battery charger
• (4) 1.9" crawler wheels
• (4) 1.9" crawler tires
• (1) 1/10 crawler body (322mm wheelbase)
• Polycarbonate paint for body
• Assembly tools

Summary

The Team Associated Enduro Comp Fox Competition Rock Crawler Kit represents the pinnacle of 1/10 scale competition crawling. With its innovative carbon fiber chassis, high-clearance portal axles, and Factory Team upgrades included from the factory, this kit provides everything a serious competitor needs to conquer any course. Build it, tune it, and dominate the rocks.
