Humminbird XP 9 HW In-Hull Transducer

Humminbird XP 9 HW In-Hull Transducer is a Dual Spectrum CHIRP 2D sonar transducer designed for glue-in installation inside a single-layer fiberglass hull. It delivers a high-frequency beam and a wide cone angle for crisp fish arches and structure details, with a CHIRP range of 150-220 kHz and a maximum depth of 1200 ft.

Built for precision, this transducer provides Dual Spectrum CHIRP capabilities to help you see more clearly below your boat. It offers robust 2D sonar performance that integrates smoothly with compatible Humminbird displays, making it a trusted choice for serious anglers.

Key features

• Dual Spectrum CHIRP 2D sonar with high-frequency beam and wide cone angle
• Full: 150-220 kHz; Narrow: 180-240 kHz; Wide: 140-200 kHz
• Max depth: 1200 ft (365 m)
• Intended for glue-in installation inside single-layer fiberglass hulls

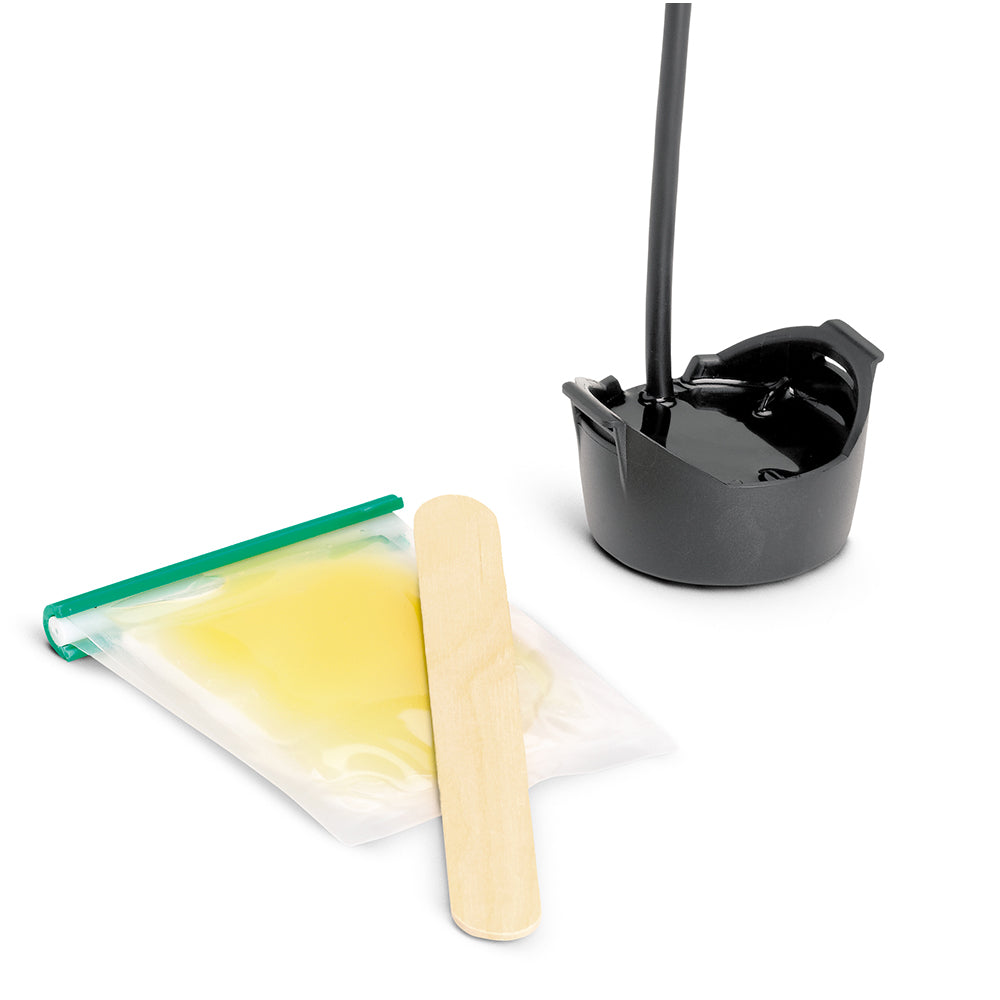

• Includes epoxy kit and 20’ cable

Compatibility

This accessory is compatible with the following Humminbird products:

• HELIX 5 CHIRP G2 – GPS-equipped models only
• HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models
• HELIX 7 CHIRP G2N/G3N – All models
• HELIX 8 CHIRP G3N – All models
• HELIX 9 CHIRP G2N/G3N – All models
• HELIX 10 CHIRP G2N/G3N – All models
• HELIX 12 CHIRP G2N/G3N – All models
• ICE HELIX CHIRP G2 – All models (In Open Water Mode)

Note: Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.

Installation and use

• Designed for glue-in installation inside a single-layer fiberglass hull
• Includes epoxy kit and 20’ cable for easy setup

Safety and regulatory

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
