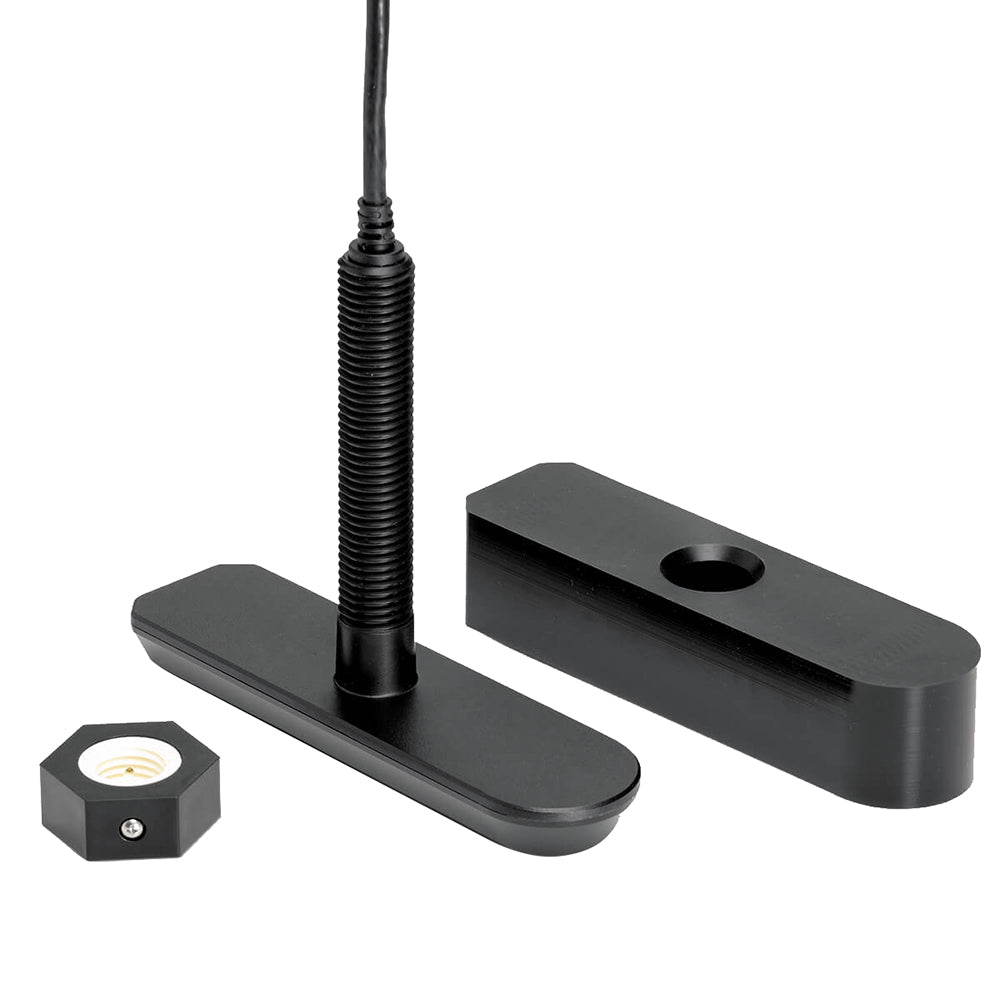

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer is a high-performance through-hull sonar solution built to unleash MEGA Imaging+ and Dual Spectrum CHIRP on Humminbird SOLIX MEGA SI+ GPS G2 displays. This rugged plastic thru-hull transducer delivers ultra-clear side and down imaging, plus versatile CHIRP sonar, so you can see fish and structure with unprecedented detail beneath and around your boat.

Designed for reliable performance in demanding marine environments, it includes a built-in temperature sensor, a durable composite housing, and a 30-foot cable for flexible installation. The XPTH 14 HW MSI T is engineered to pair with SOLIX 10, SOLIX 12, and SOLIX 15 CHIRP MEGA SI+ GPS G2 systems to maximize MEGA imaging and deep-penetration 2D sonar.

Key Features

• MEGA Imaging+ and Dual Spectrum CHIRP deliver high-resolution side imaging, down imaging, and 2D sonar for superior target separation and structure detail.
• MEGA Side Imaging Frequencies: 455kHz (440–500 kHz) with up to 800 ft (244 m) range; 800kHz (790–850 kHz) with up to 250 ft (76 m) range; MEGA SI+ (1075–1150 kHz) with up to 400 ft (122 m) range.
• MEGA Down Imaging Frequencies: 455kHz (440–500 kHz) up to 400 ft (122 m); 800kHz (790–850 kHz) up to 250 ft (76 m); MEGA DI+ (1075–1150 kHz) up to 200 ft (61 m).
• Dual Spectrum CHIRP 2D Sonar: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz; maximum depth up to 1200 ft (365 m).
• Built-in Temperature Sensor helps you monitor water temperature for patterning fish activity and bait choices.
• Rugged Composite Construction delivers durable performance in harsh marine conditions.

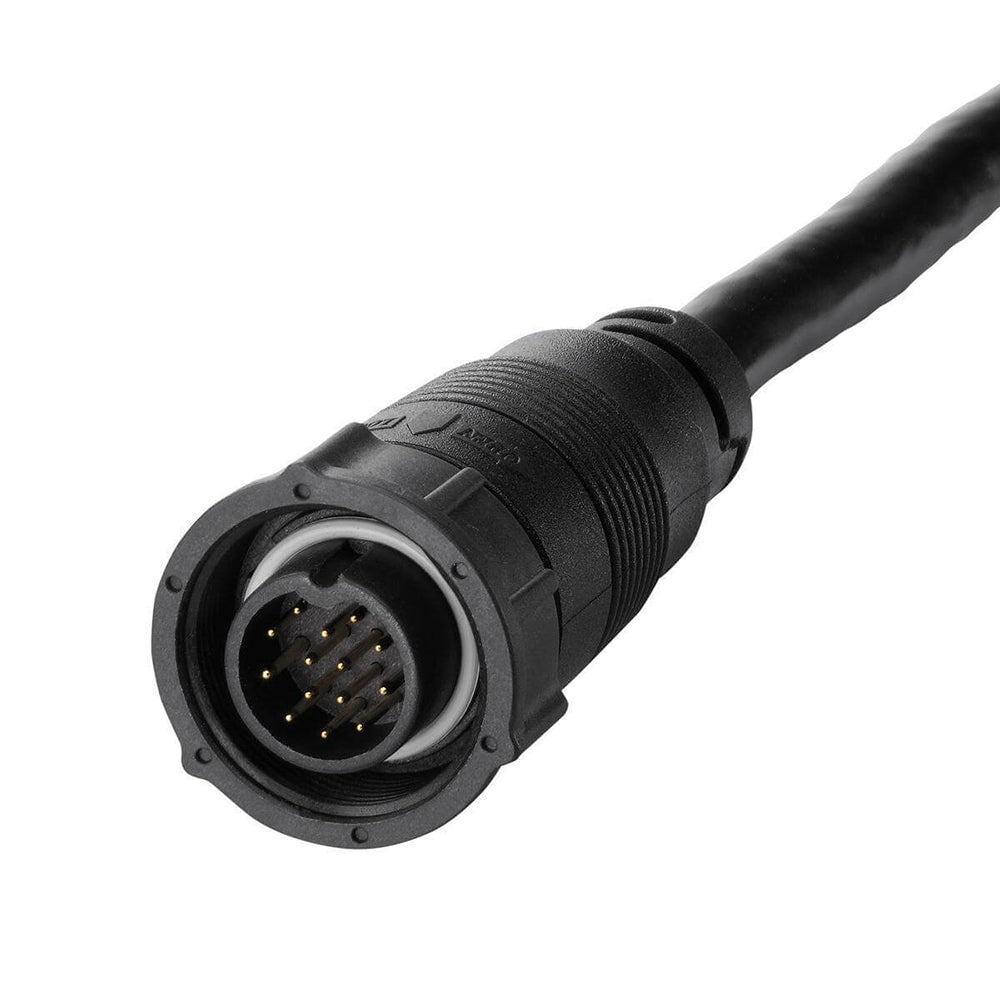

• 30' Cable provides flexible installation and routing options.
• Thru-Hull Plastic Design for a clean hull mount with minimal drag.
• Dimensions: 8.4" L x 2.3" W x 1.0" D; Stem Length 5", Stem Diameter 1".

Compatibility & Specifications

Compatibility: Works with Humminbird SOLIX series displays featuring CHIRP MEGA SI+ GPS G2 functionality, specifically SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, and SOLIX 15 CHIRP MEGA SI+ GPS G2 devices.

Warranty: 1-Year Limited Warranty.
