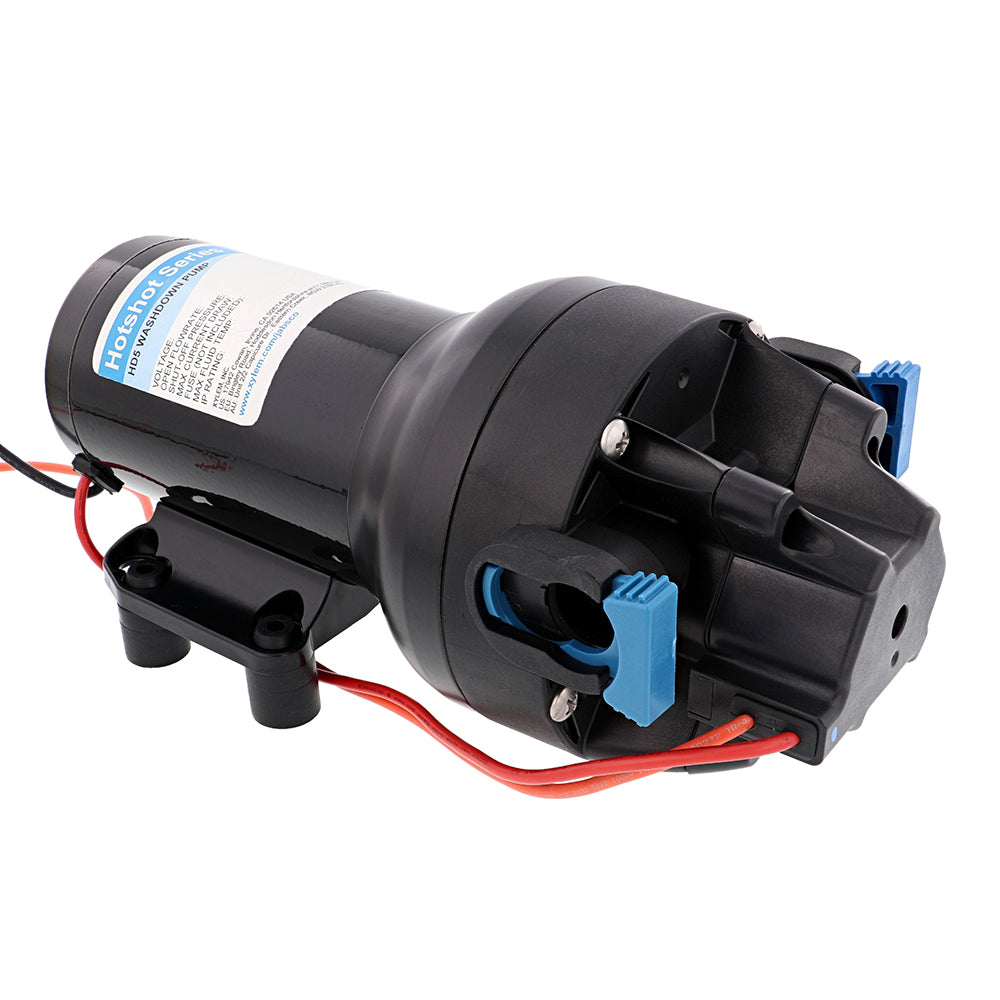

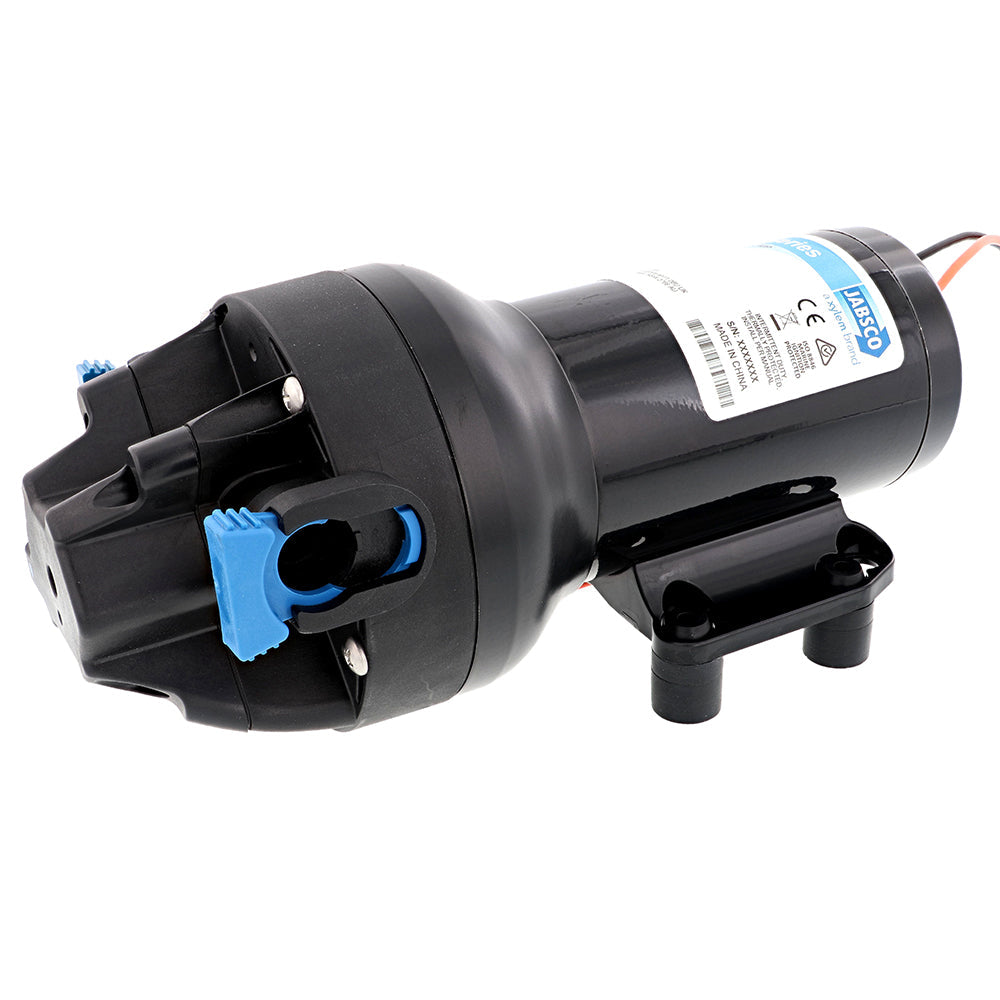

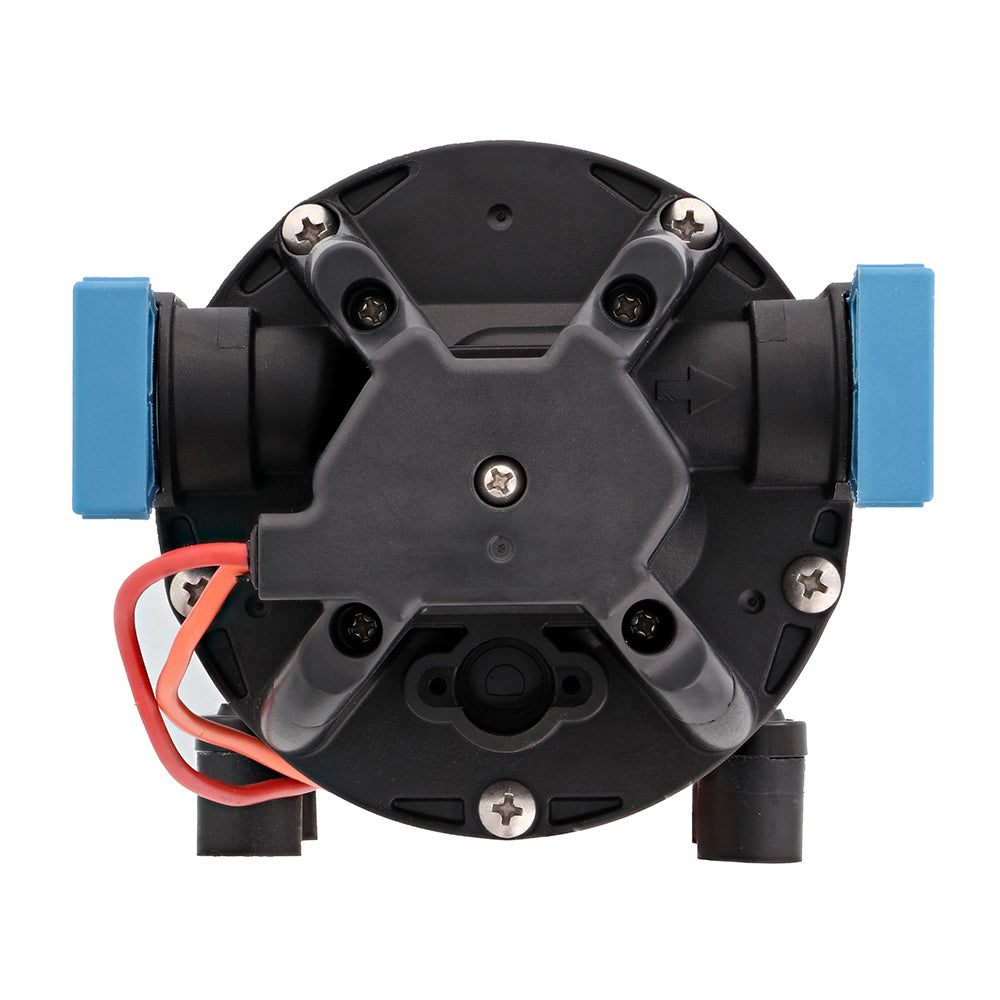

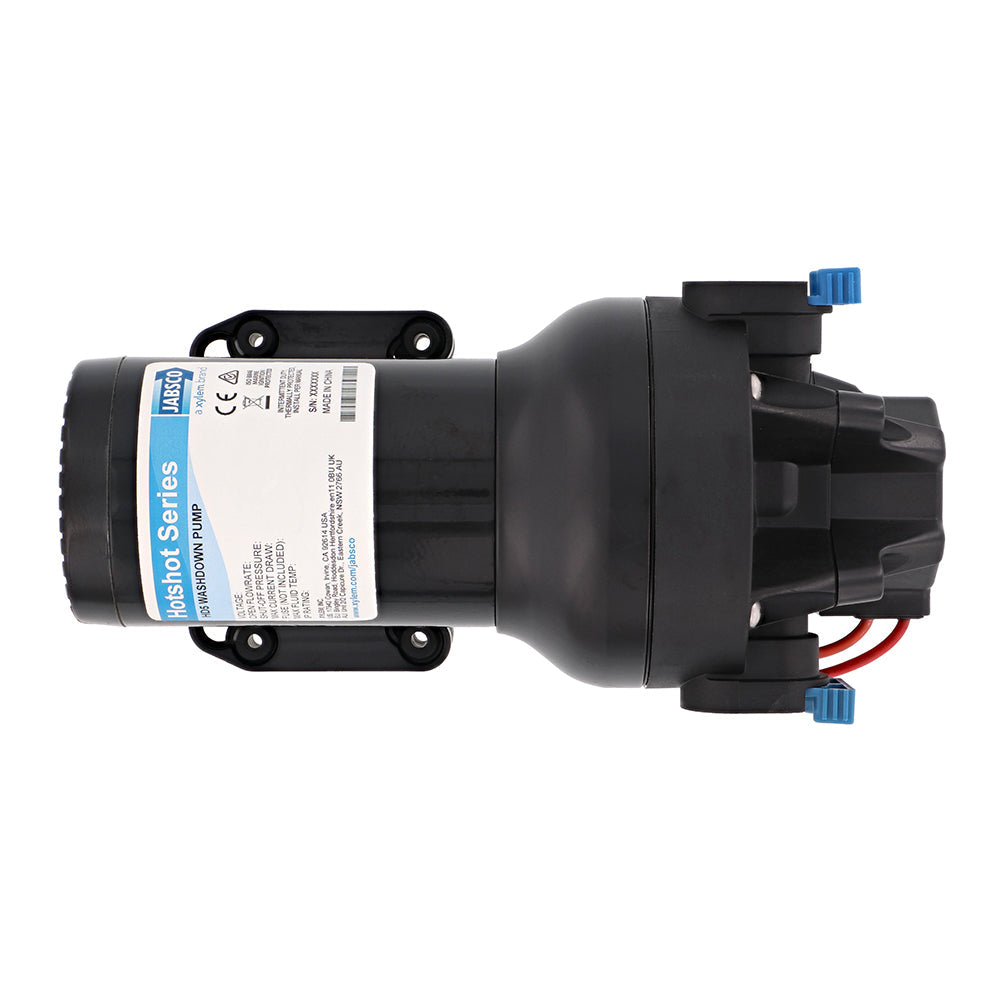

Jabsco HotShot HD5 Heavy Duty Washdown Pump - 12V - 5 GPM - 70 PSI

Powerful 12V washdown solution built for relentless decks and heavy-duty cleaning, the Jabsco HotShot HD5 Heavy Duty Washdown Pump delivers 5 GPM at 70 PSI, engineered for reliable performance in marine and rugged environments.

HD models feature a wider diameter motor with a powder-coated shell, plus cast aluminum endbells and lower housing to improve pressure capability and longevity. A plastic housing protects the motor from corrosion, ensuring enduring operation in challenging conditions.

The HotShot HD5 utilizes advanced co-molded diaphragm technology for long life and durability. It provides efficient, quiet operation and includes an integrated, sealed pressure switch for on-demand activation. With self-priming capability, it offers installation versatility and can run dry without damage, making it ideal for boats, wash-down stations, and remote setups.

• High flow and pressure: 5 GPM at 70 PSI for thorough cleaning and fast results.
• Easy installation: Quick-connect ports simplify plumbing and maintenance.
• Durable construction: Heavy-duty motor, cast aluminum lower housing, and corrosion-protective plastic shell.
• On-demand operation: Integrated sealed pressure switch provides immediate spray only when needed.
• Flexible mounting: Self-priming to 7 ft and vibration-dampening feet reduce movement and noise.
• Reliable components: EPDM check valves, TPV diaphragm, and IPX6 protection for rugged marine use.

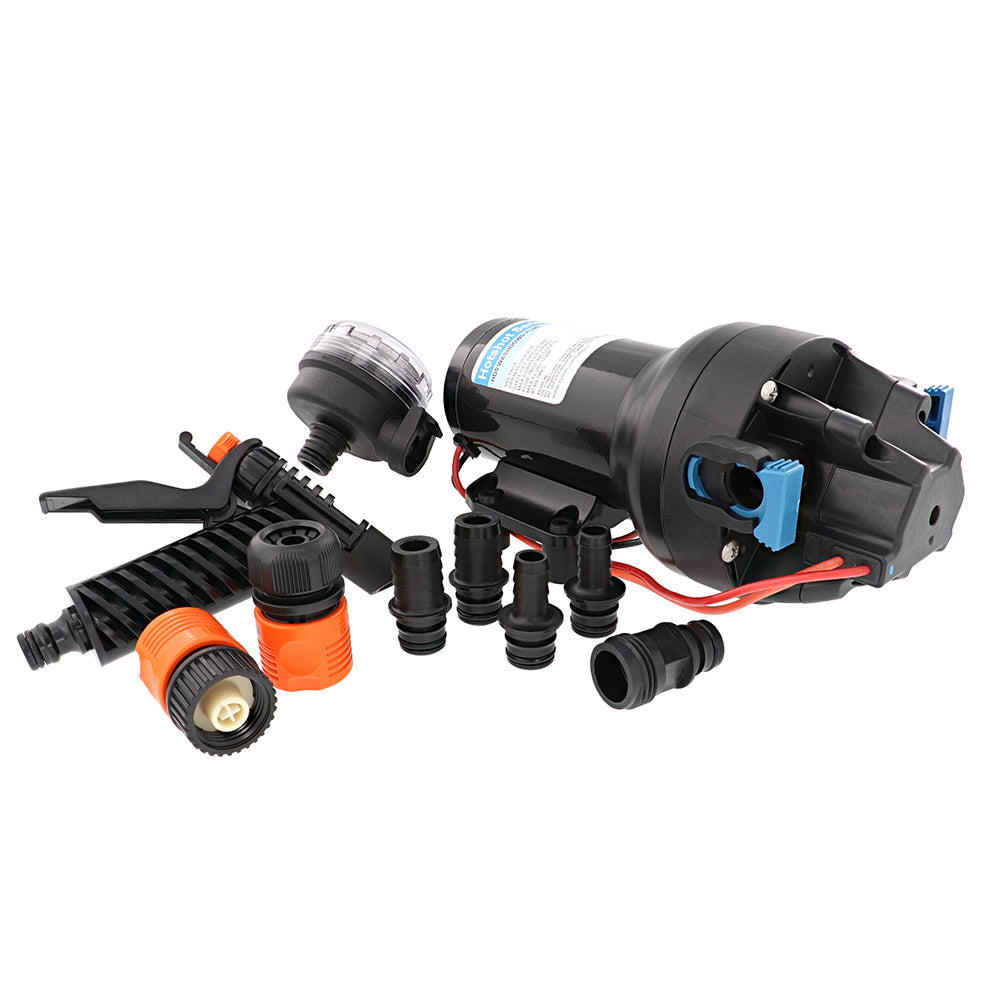

• Versatile fittings: Quick Connect straight hose barb and GHT fittings; 90° 20 mesh strainer; trigger nozzle and hose adapters.

Specifications at a glance

• Motor design: Brushed, permanent magnet TENV
• Pumphead material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming: 7 ft (2.1 m) min
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Fittings & accessories: Quick Connect straight hosebarb and GHT fittings; 90° 20 mesh quick-connect strainer; trigger nozzle & hose adapters
• Kit options: Full kit versions available with a 25 ft (7.6 m) hose coil; hose-only versions without hose are offered

Why choose Jabsco HotShot HD5

combine proven reliability, robust performance, and user-friendly design to handle demanding washdown tasks with ease. From deck cleanup on a fishing boat to fast prep at remote work sites, the HD5 delivers consistent pressure, long service life, and simple maintenance thanks to its durable diaphragm technology and thoughtful engineering.
