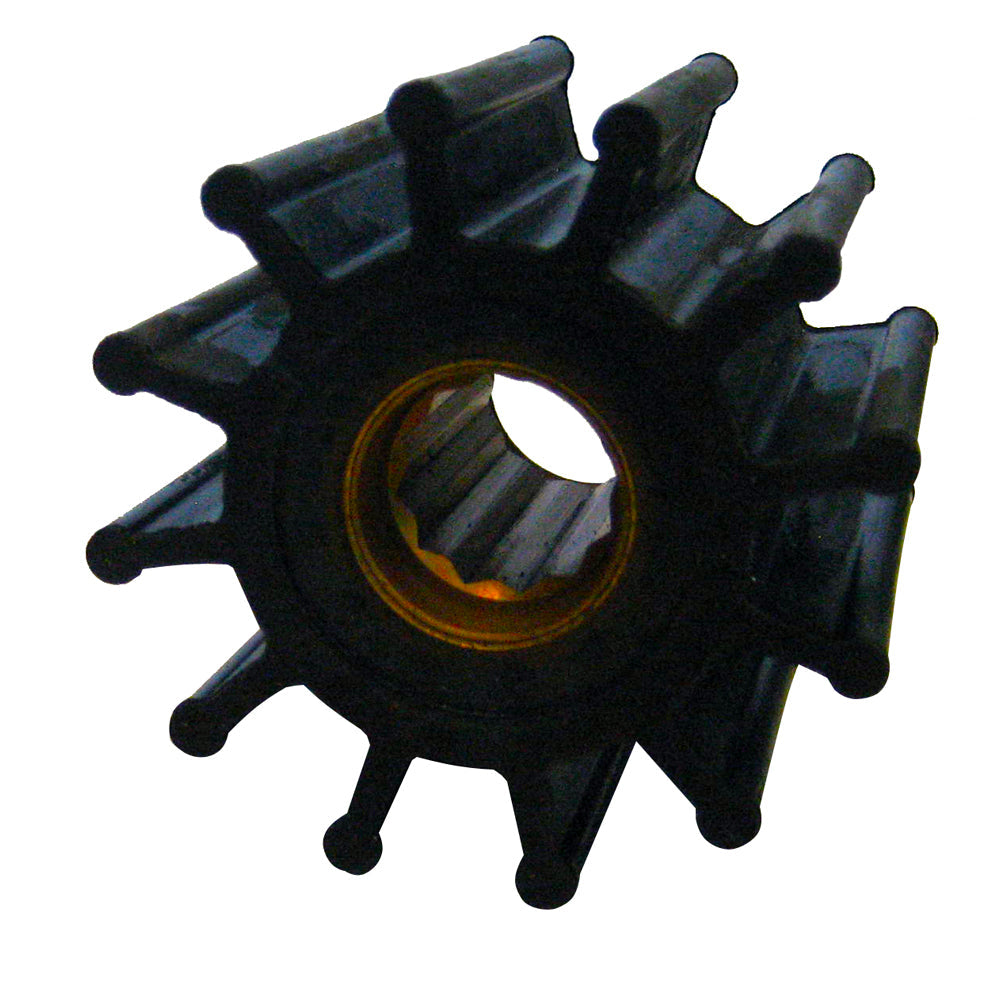

Jabsco Impeller Kit - 12 Blade - Neoprene - 2-¼ Diameter

Jabsco Impeller Kit - 12 Blade - Neoprene - 2-¼ Diameter

Engineered for dependable performance, this Jabsco impeller kit features a neoprene 12‑blade impeller with a spline drive and a brass insert. Designed to fit bronze flexible impeller pumps, it delivers reliable cooling, efficient bilge and transfer operation, and versatile general‑purpose use across a wide range of makes and models.

• 12‑blade neoprene impeller for strong prime, durable flow, and long service life
• Diameter 2-¼ inches with shaft width 5/8 inch and shaft diameter 1-29/32 inch for precise fit
• Brass insert ensures robustness and reliable performance under tough conditions
• Spline drive compatibility with most bronze flexible impeller engine cooling, bilge, transfer and general‑purpose pumps

Maintenance and installation guidance helps maximize longevity. Replace impellers at least once per year, or sooner based on engine duty. When installed correctly, an impeller may last for several years, but it’s wise to follow a preventative maintenance schedule. Replacing an impeller is straightforward: remove the end cover screws and use either a Jabsco Impeller Removal Tool or channel‑lock pliers to grip the hub. Do not use screwdrivers, which can damage the pump face or cause leaks in confined spaces. Always keep spare impellers onboard for emergencies, and grease new impellers to ease installation and improve initial prime protection.

Important safety notice: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer: Jabsco
Manufacturer Part No: 13554-0001-P
UPC: 671880588126

Specifications

• Material: Neoprene
• Drive Type: Spline Drive
• Number of Blades: 12
• Diameter: 2-¼"
• Shaft Width: 5/8"
• Shaft Diameter: 1-29/32"
• Insert Material: Brass
