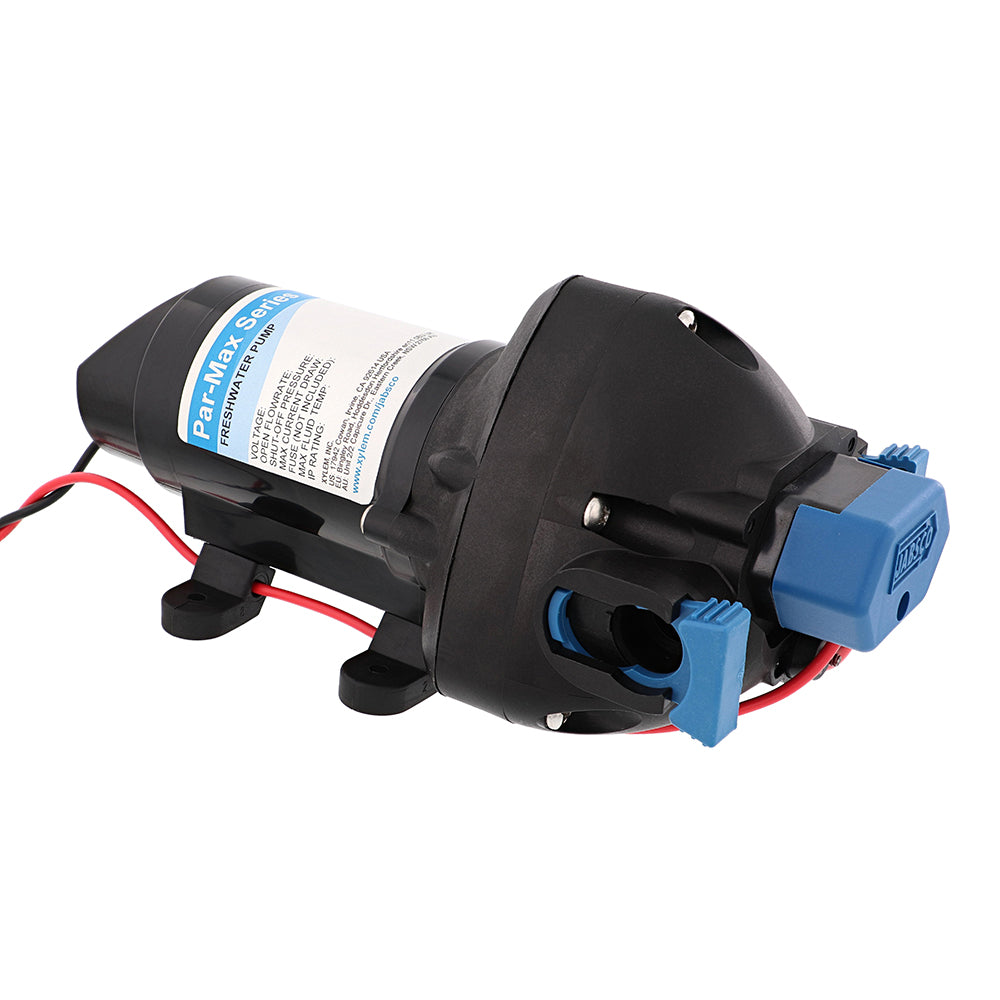

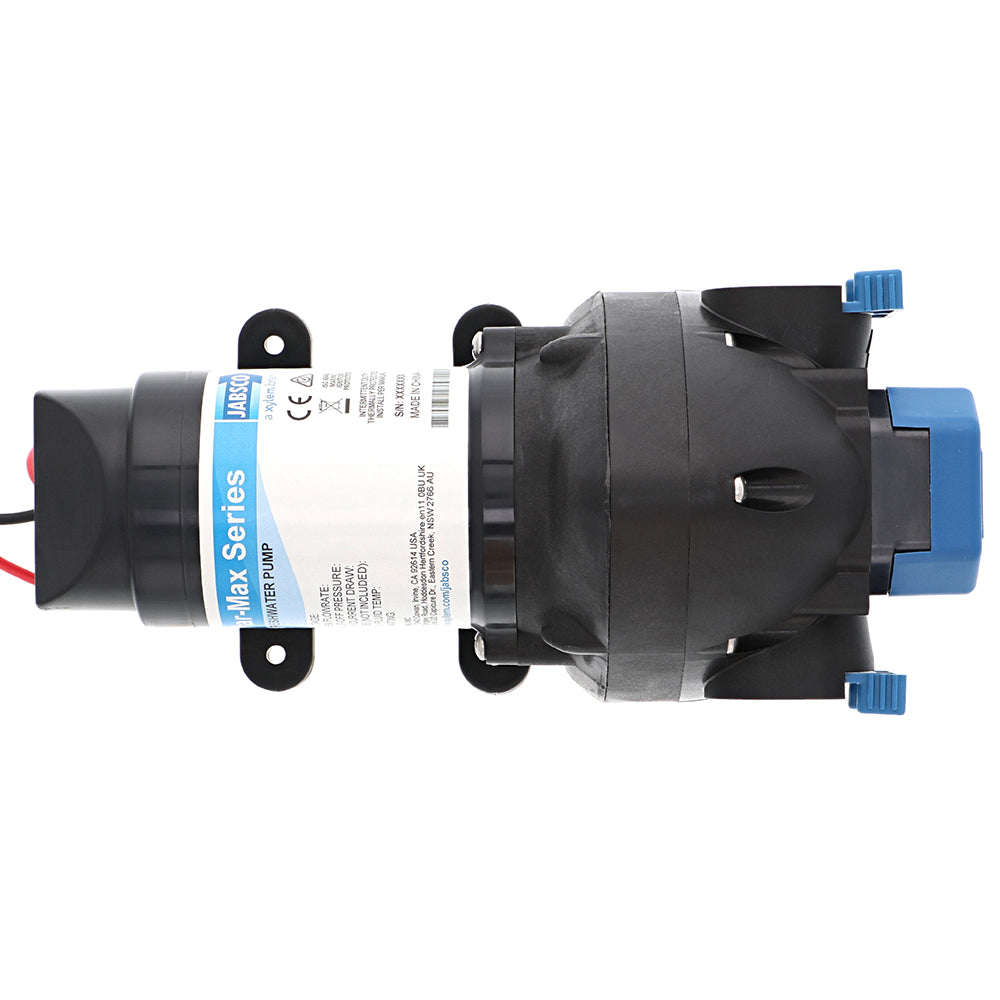

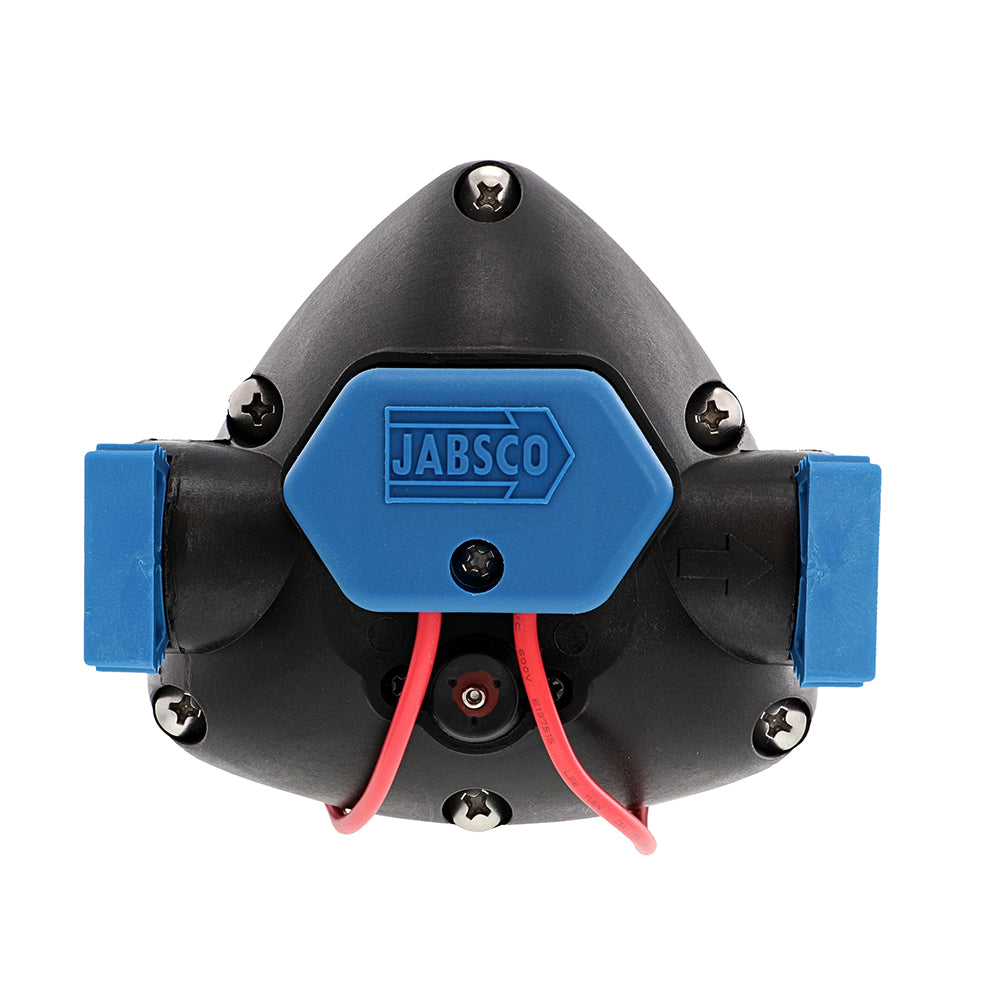

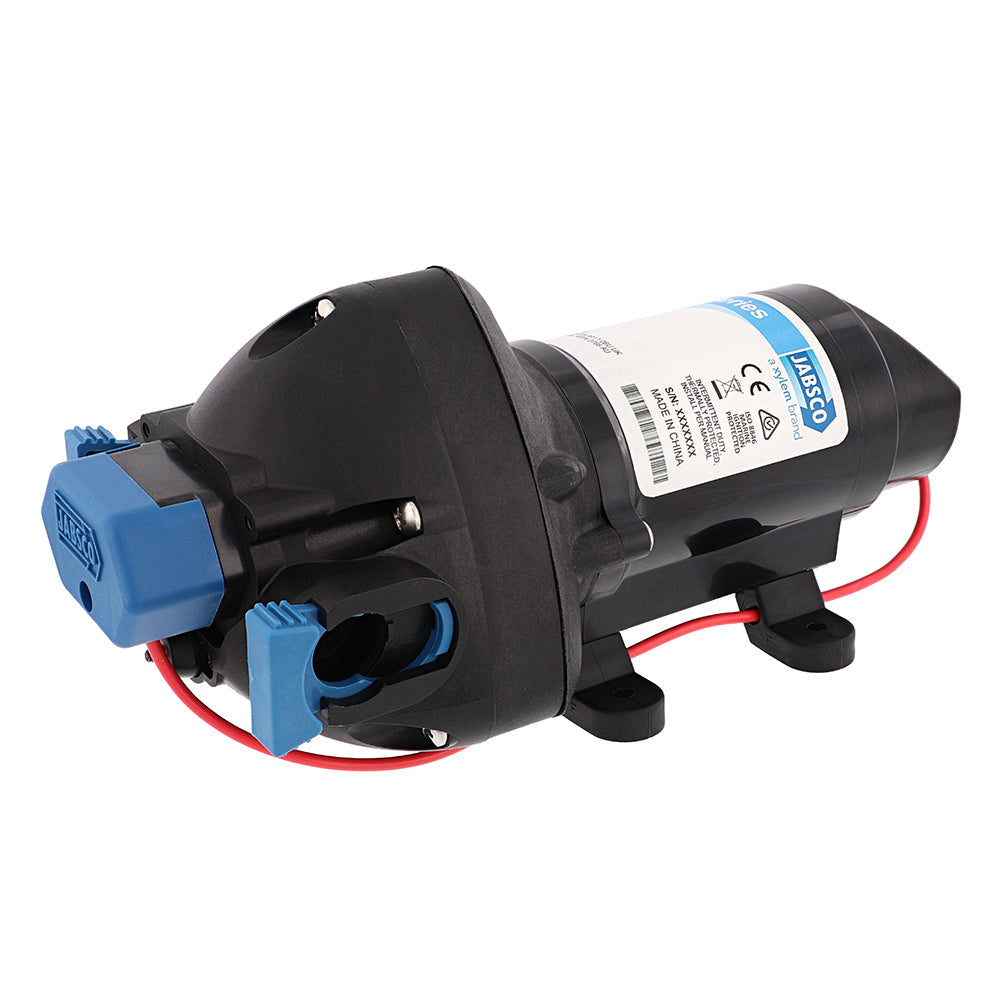

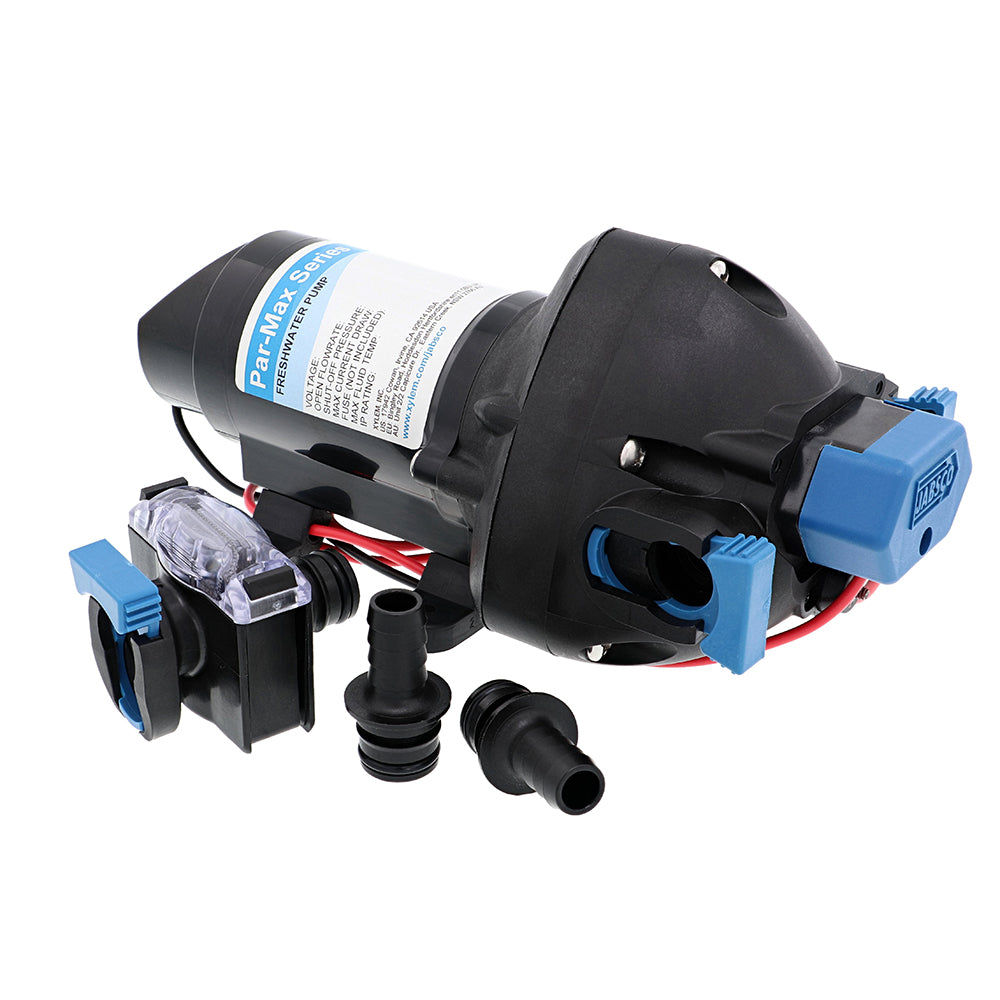

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

Meet the Jabsco Par-Max 3 Water Pressure Pump – a compact, dependable 24V pump delivering 3 GPM at 25 PSI, engineered to keep showers, faucets, and marine systems flowing smoothly. Part of Jabsco's Par-Max line, it balances performance with a compact footprint for vessels and RVs.

HD (Heavy Duty) models in the Par-Max family feature a wider diameter motor with a powder-coated shell, and cast aluminum endbells and lower housing to improve pressure capability and life. The standard Par-Max 3 provides solid performance in an economical footprint and is designed for a 1-3 GPM configuration on boats with multiple outlets.

Key features

• Co-molded diaphragm technology for long life and durability even under demanding conditions.
• Integrated, sealed pressure switch for on-demand operation and quiet performance.
• Self-priming design with a minimum 7 ft (2.13 m) priming capability for versatile installation.
• Can run dry without damage, offering added protection in tricky setups.
• Quick-connect ports for fast installation, service, and maintenance.
• Vibration-dampening mounting feet for smoother operation.
• Integrated bypass module to reduce cycling and provide smoother flow.
• Corrosion-protected plastic motor housing.

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming: 7 ft min (2.13 m)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

Note: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
