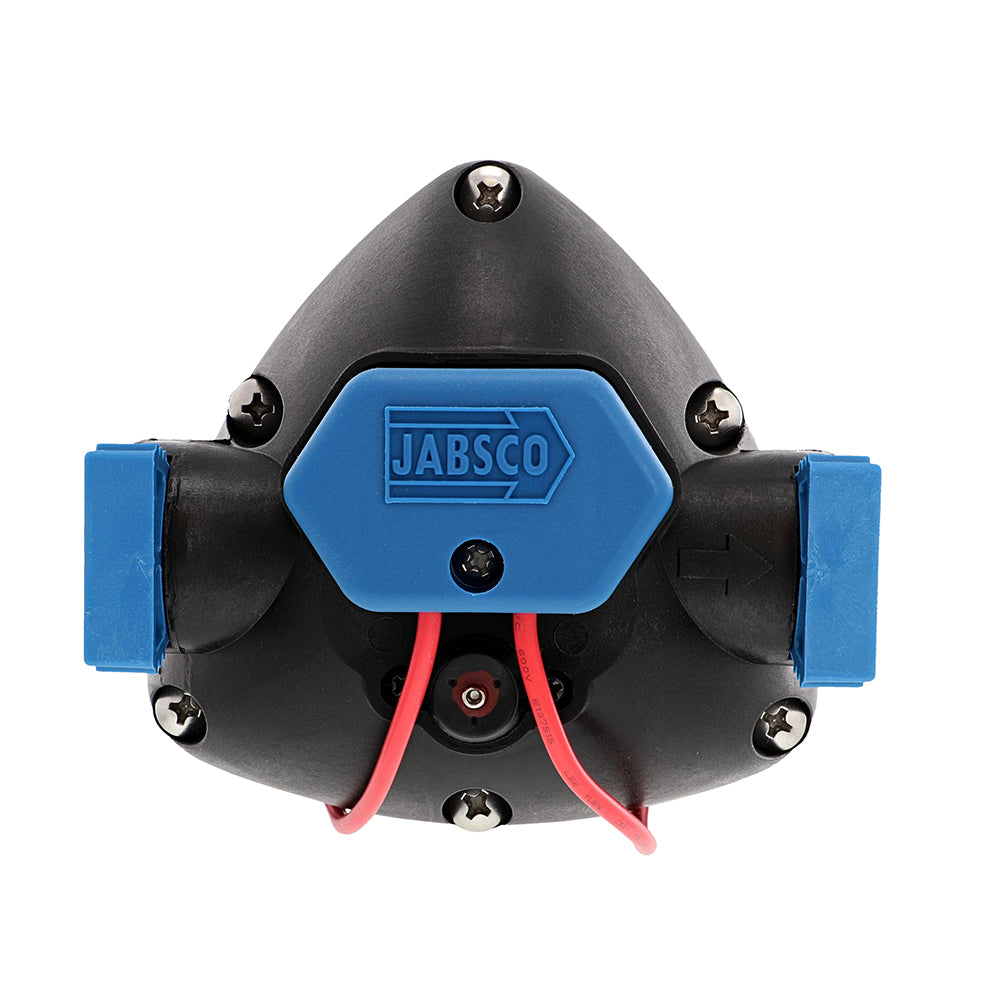

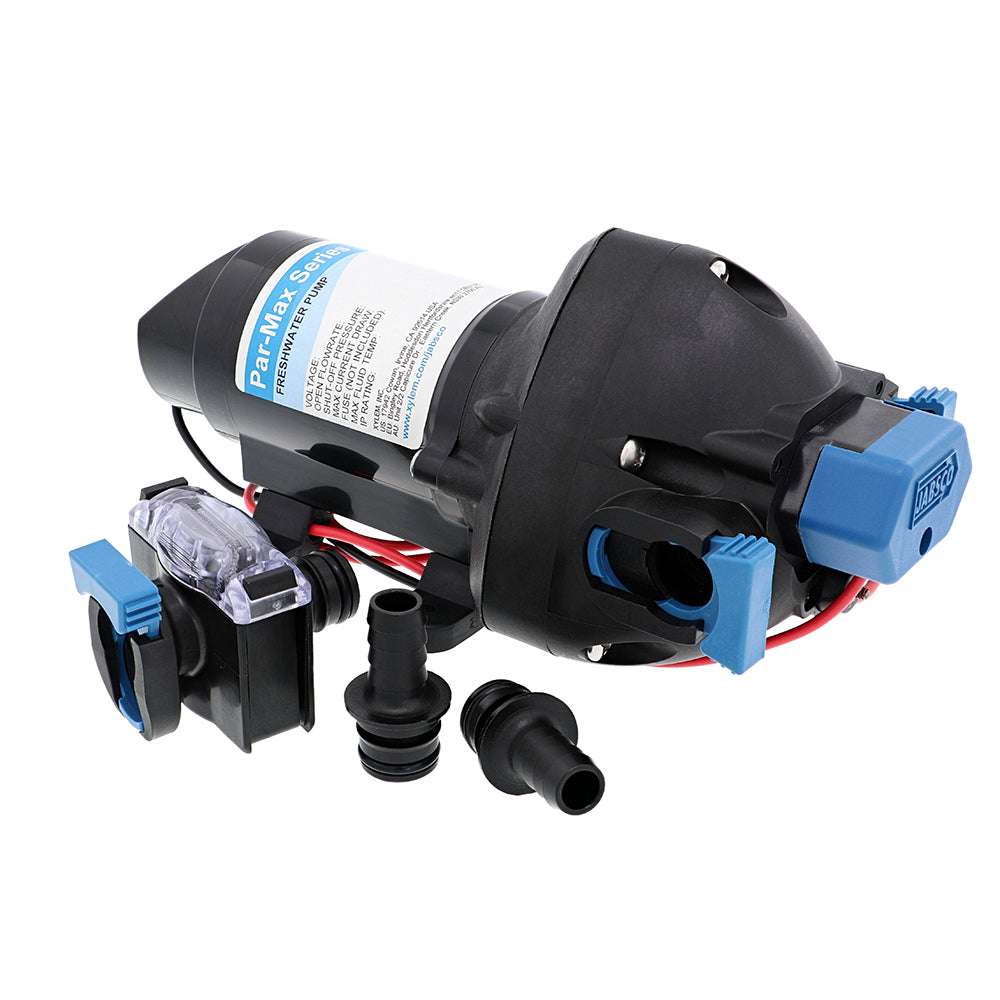

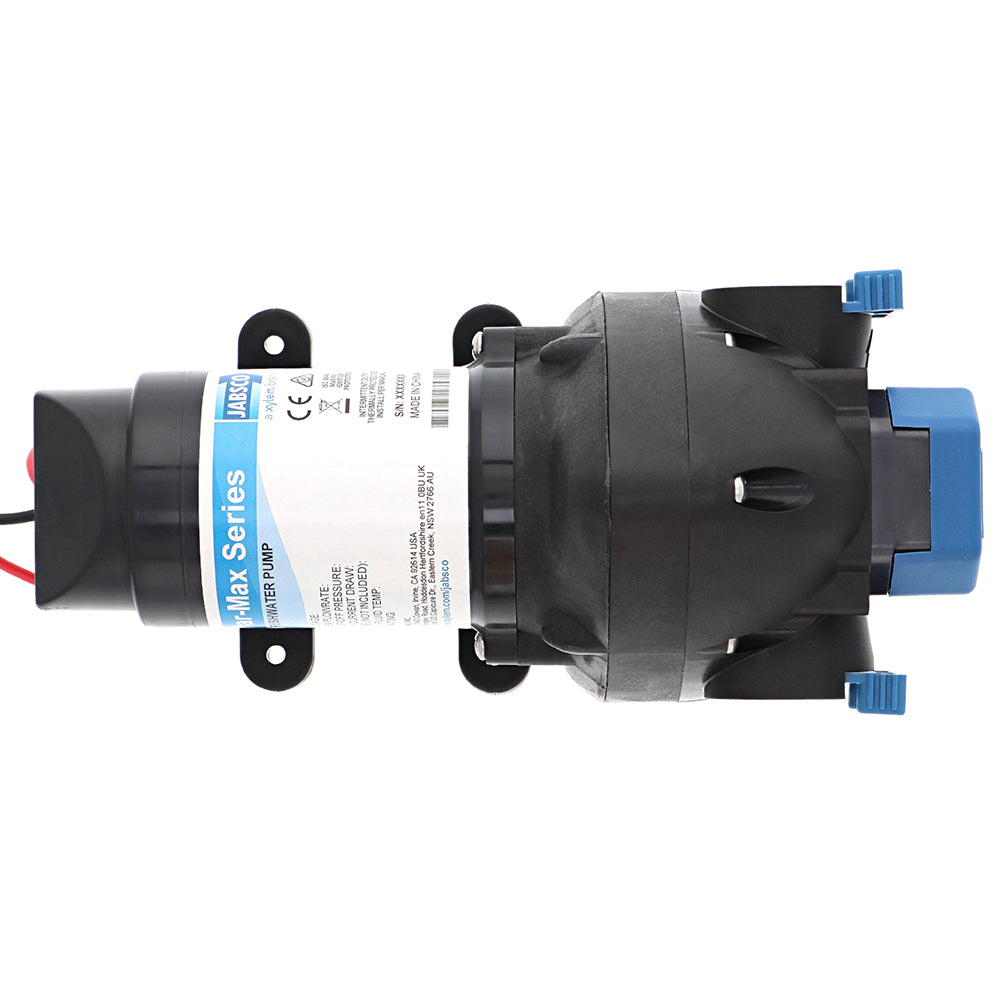

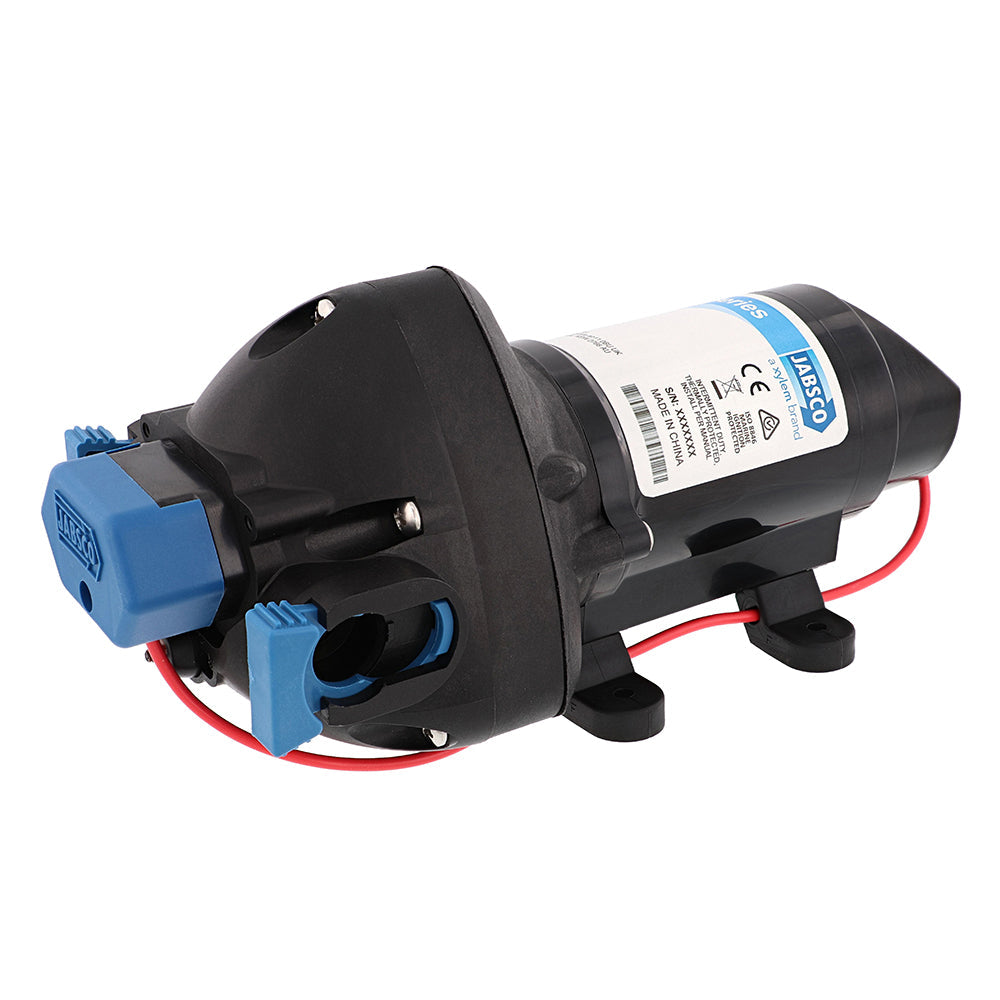

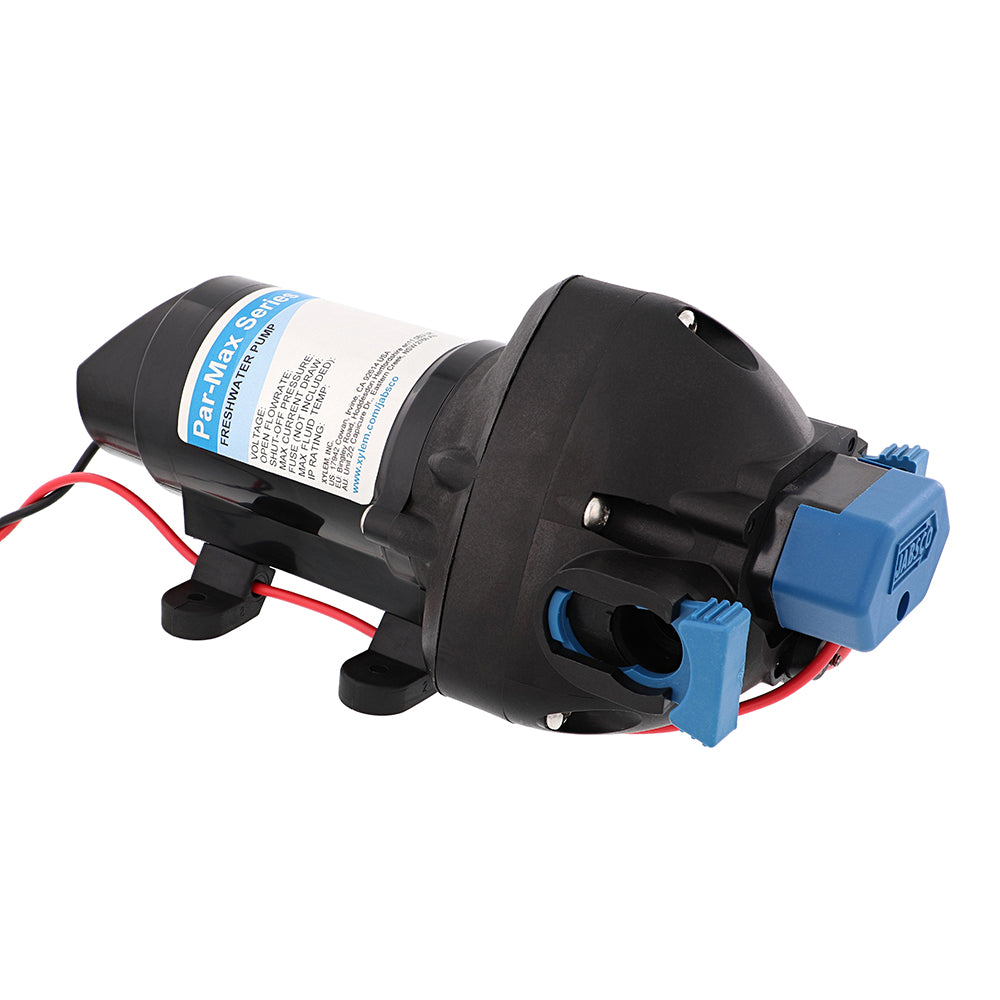

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI is a compact, high-performance solution designed to deliver consistent water pressure for boats, RVs, and off-grid setups. The Par-Max 3 combines reliability, efficiency, and versatile installation in a single pump you can count on every day.

HD (Heavy Duty) models elevate pressure capability and longevity with a wider diameter motor, powder-coated shell, and cast aluminum end bells and lower housing. These features deliver robust performance at higher pressures, while standard models provide solid performance in a compact, economical footprint.

• Co-molded diaphragm technology for long life and durability
• HD models: heavy-duty motor and cast aluminum lower housing for extended life at higher pressures
• Configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR)
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming design allows for installation versatility (7 ft minimum dry priming)
• Can run dry without damage
• Quick connect ports for easy installation, servicing, and maintenance
• Vibration-dampening mounting feet
• Integrated bypass module to reduce cycling and provide smoother flow
• Plastic housing protects motors from corrosion

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7 ft (2.13 m)
• Certifications: CE, ISO8846, RCM; Ingress Protection IPX6

Note: This product carries a California Prop 65 warning for exposure to ANTIMONY OXIDE (ANTIMONY TRIOXIDE). For more information, visit P65Warnings.ca.gov.
