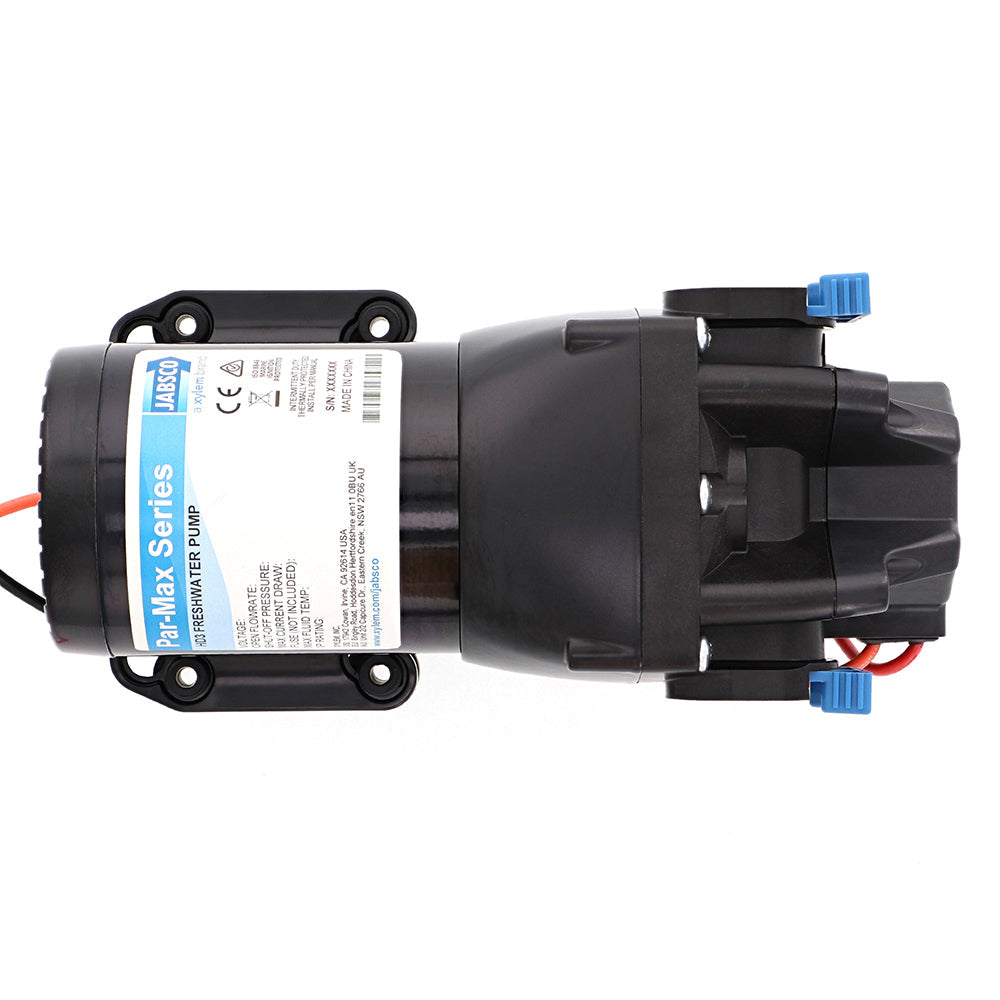

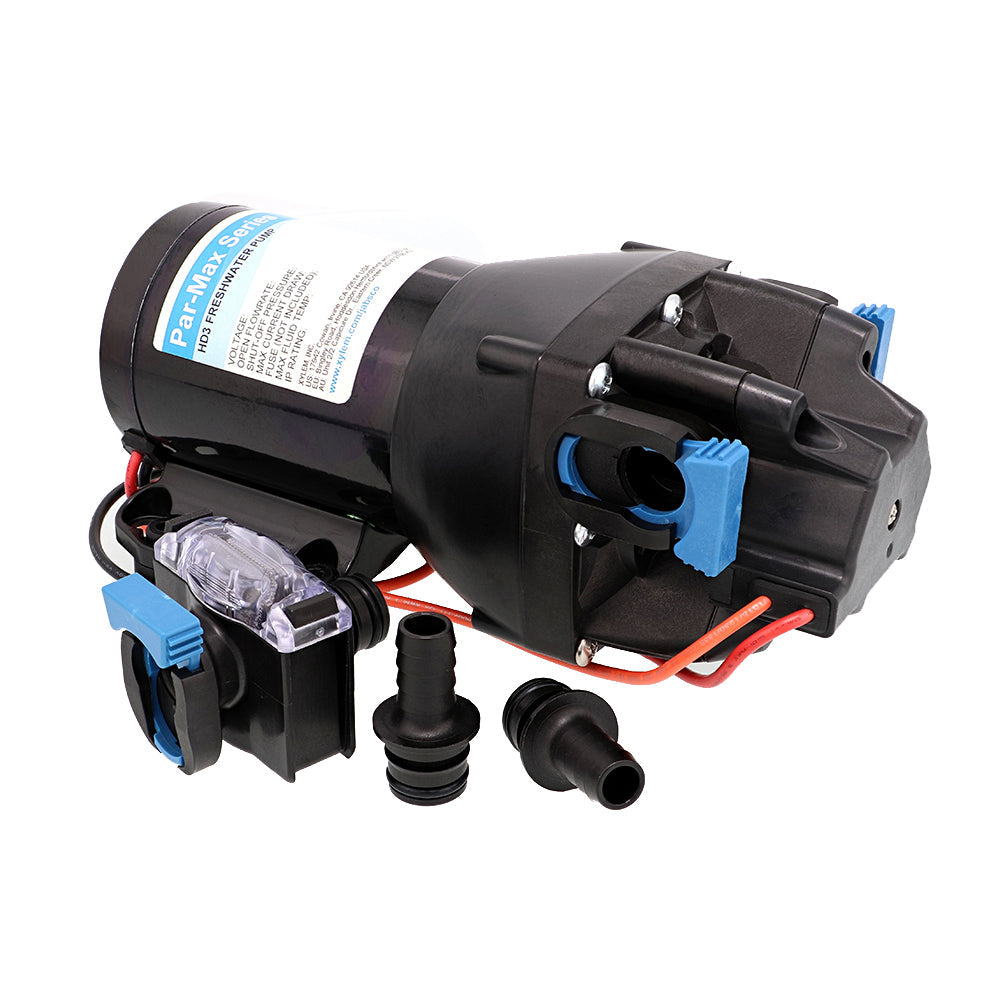

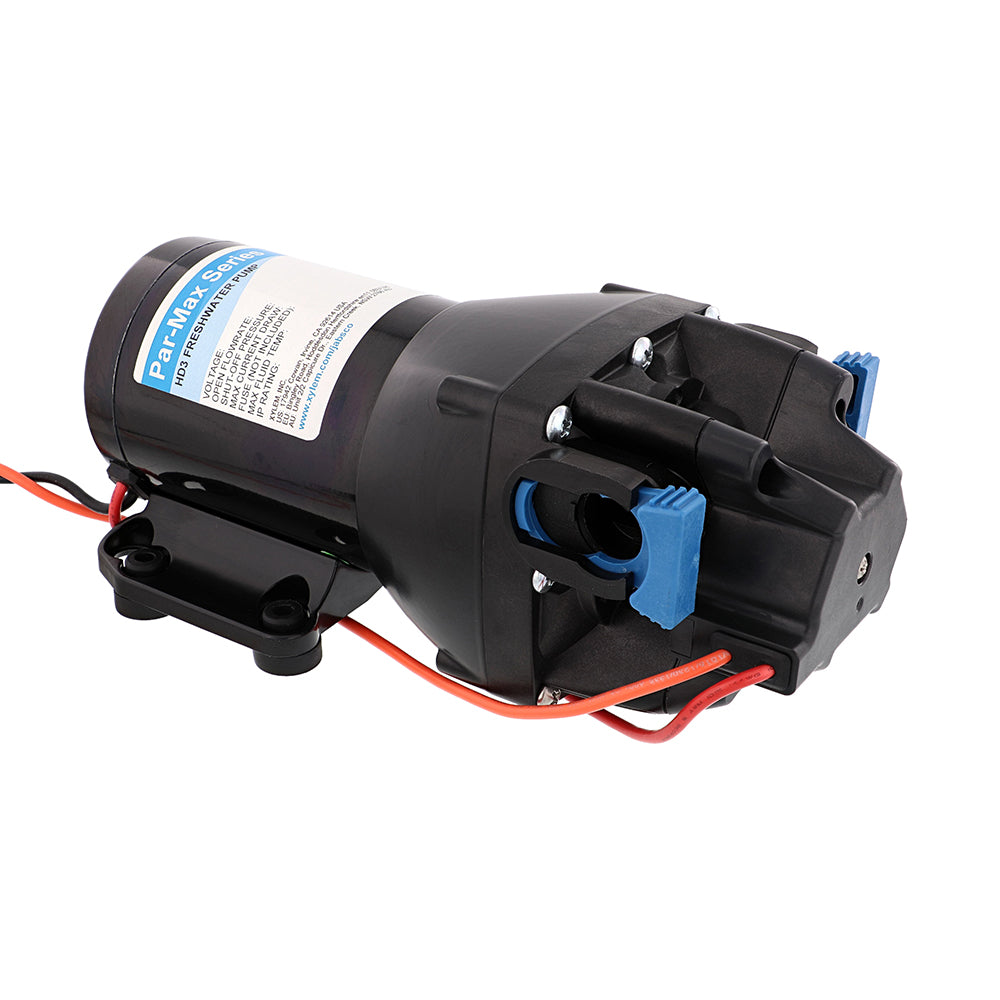

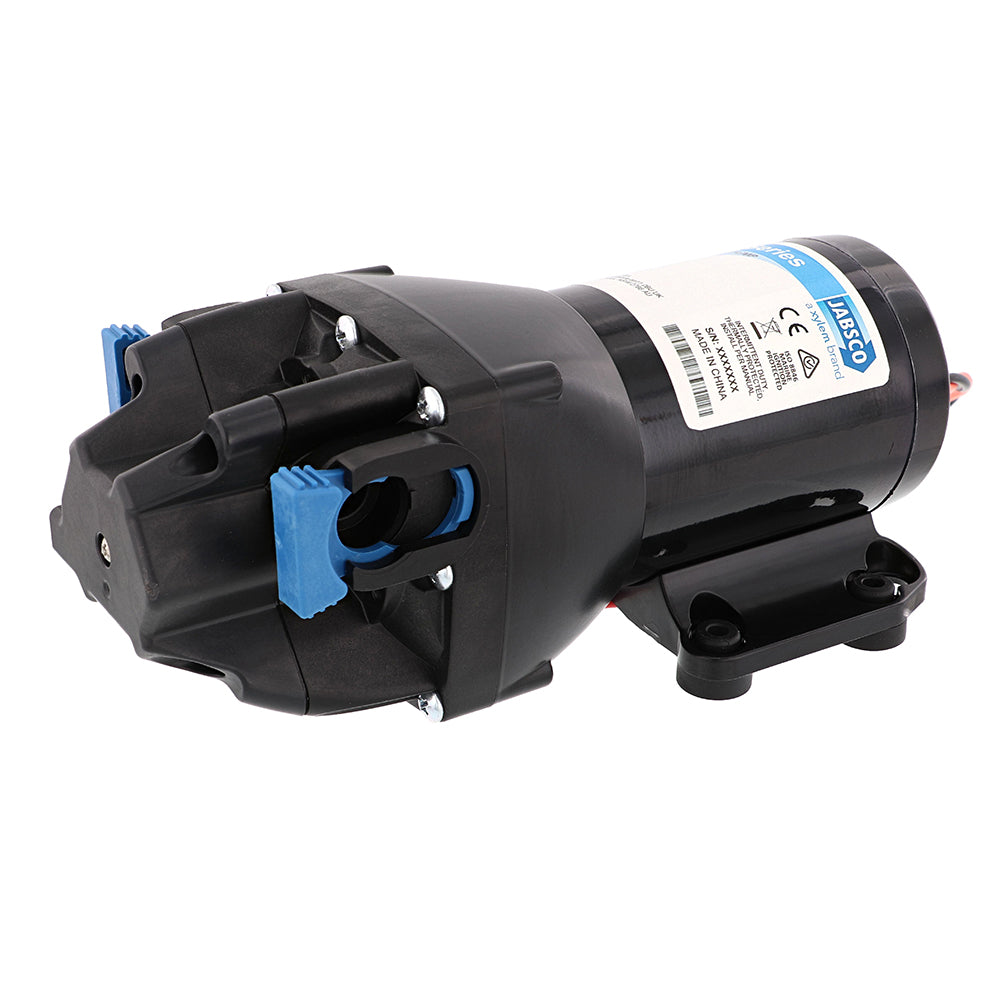

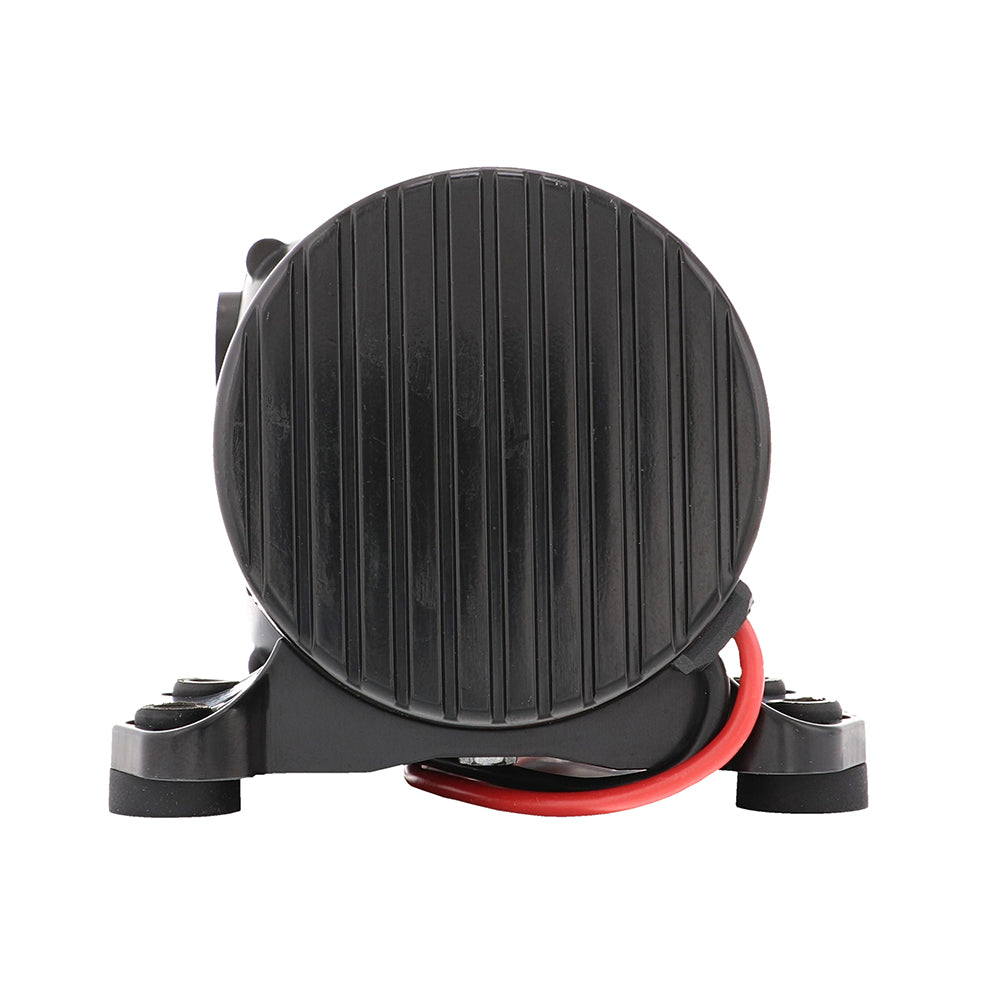

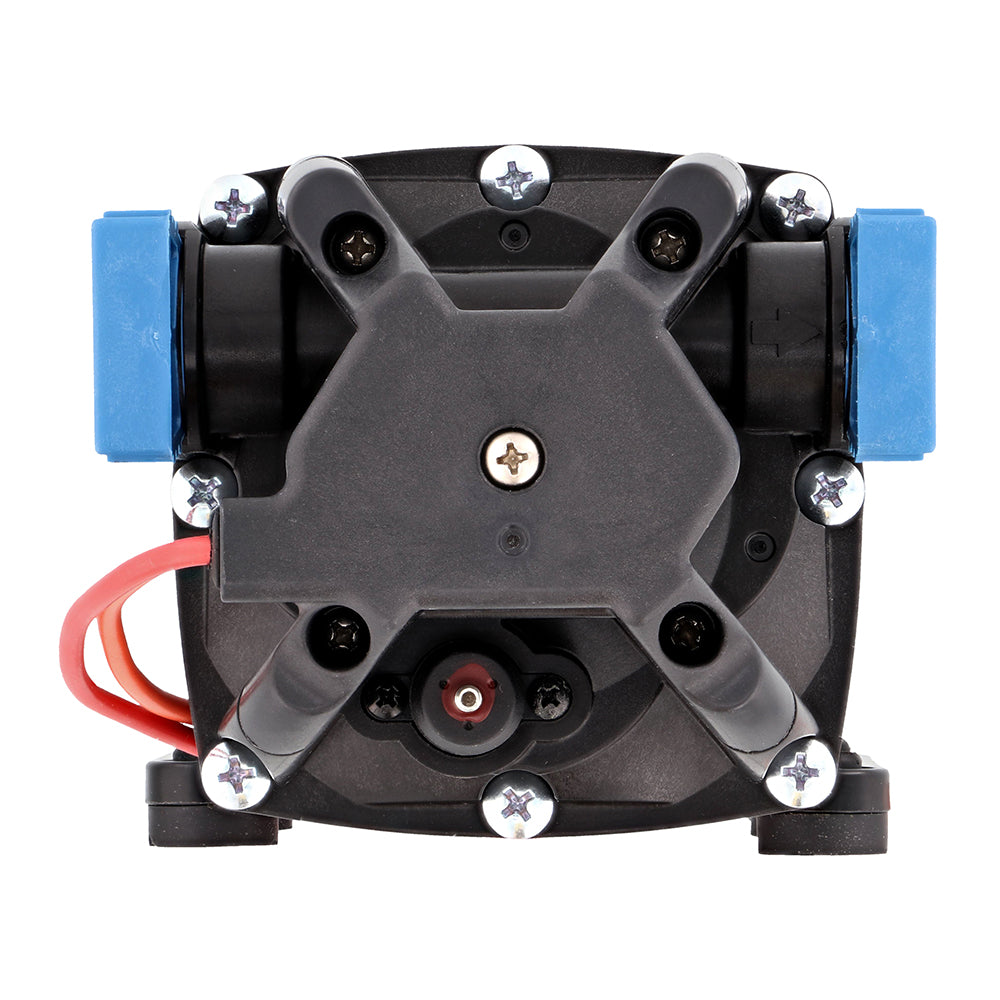

Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSI

Meet the Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump — a rugged 12V solution delivering 3 GPM at 40 PSI for reliable water pressure on boats, RVs, and other demanding installations. HD3 models feature a wider motor with a powder-coated shell, cast aluminum endbells and a reinforced lower housing to maximize pressure capability and extend service life.

Key advantages

• Heavy-duty build: Wider motor, powder-coated shell, cast aluminum endbells and lower housing for higher pressure and greater durability.
• Versatile performance: Configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR); standard models deliver economical performance for vessels with 1–3 outlets.
• Efficient and quiet: Co-molded diaphragm technology minimizes wear while the integrated bypass module delivers smoother flow and reduced cycling.
• On-demand and versatile: Integrated sealed pressure switch enables automatic operation, while self-priming allows flexible installation (dry-run capability up to 7 ft).
• Easy installation: Quick-connect ports, vibration-damping mounting feet, and a corrosion-protective plastic housing simplify setup and maintenance.
• Reliable and safe: IPX6 ingress protection with CE, ISO8846, and RCM certifications for quality and safety.

Technical specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7 ft (2.13 m)
• Ingress Protection: IPX6
• Certifications: CE, ISO8846, RCM

Note: This product includes a California Prop 65 warning regarding exposure to ANTIMONY OXIDE (ANTIMONY TRIOXIDE). For more information, visit P65Warnings.ca.gov.
