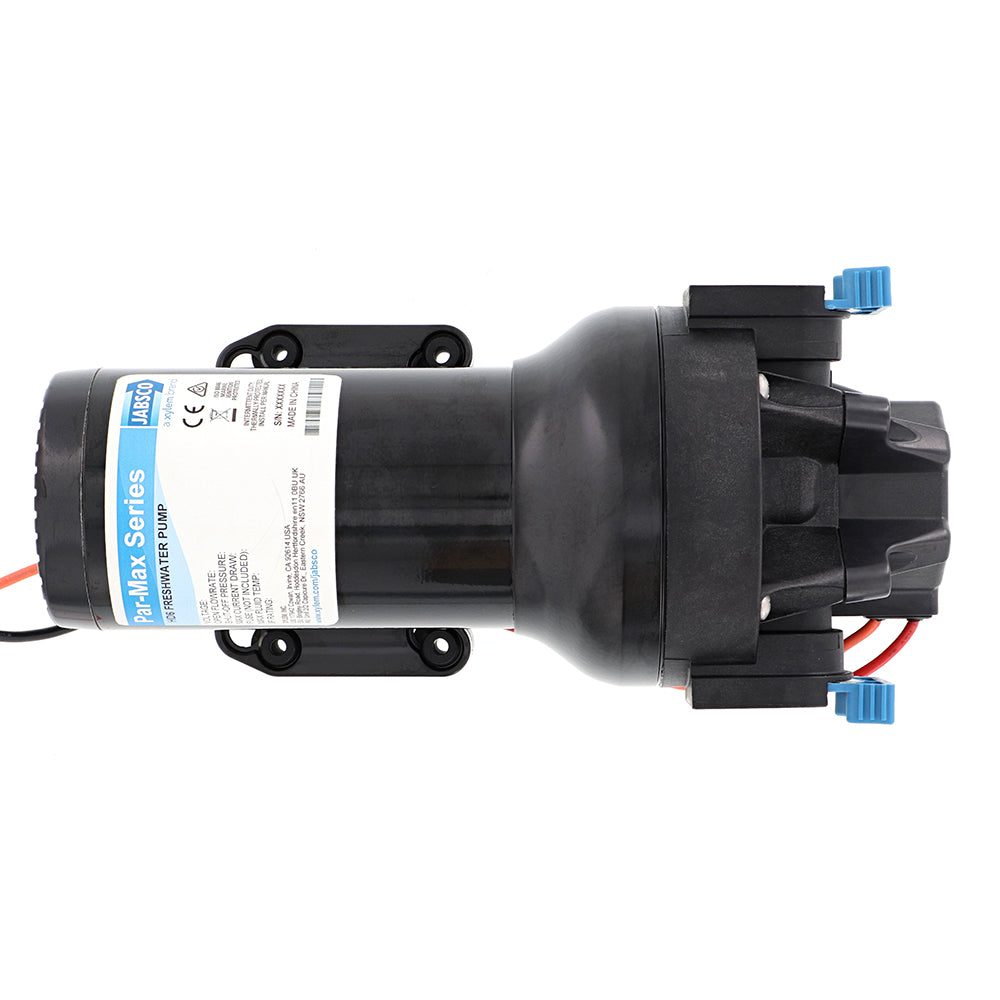

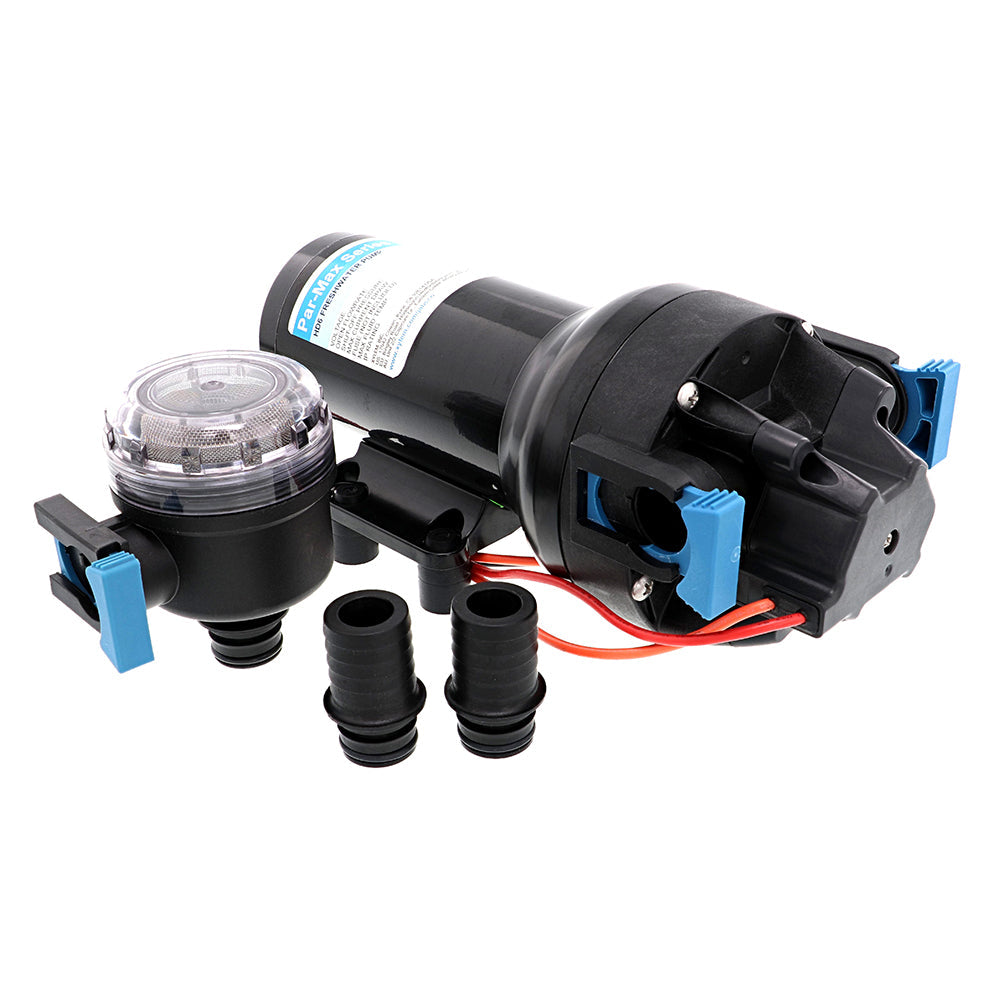

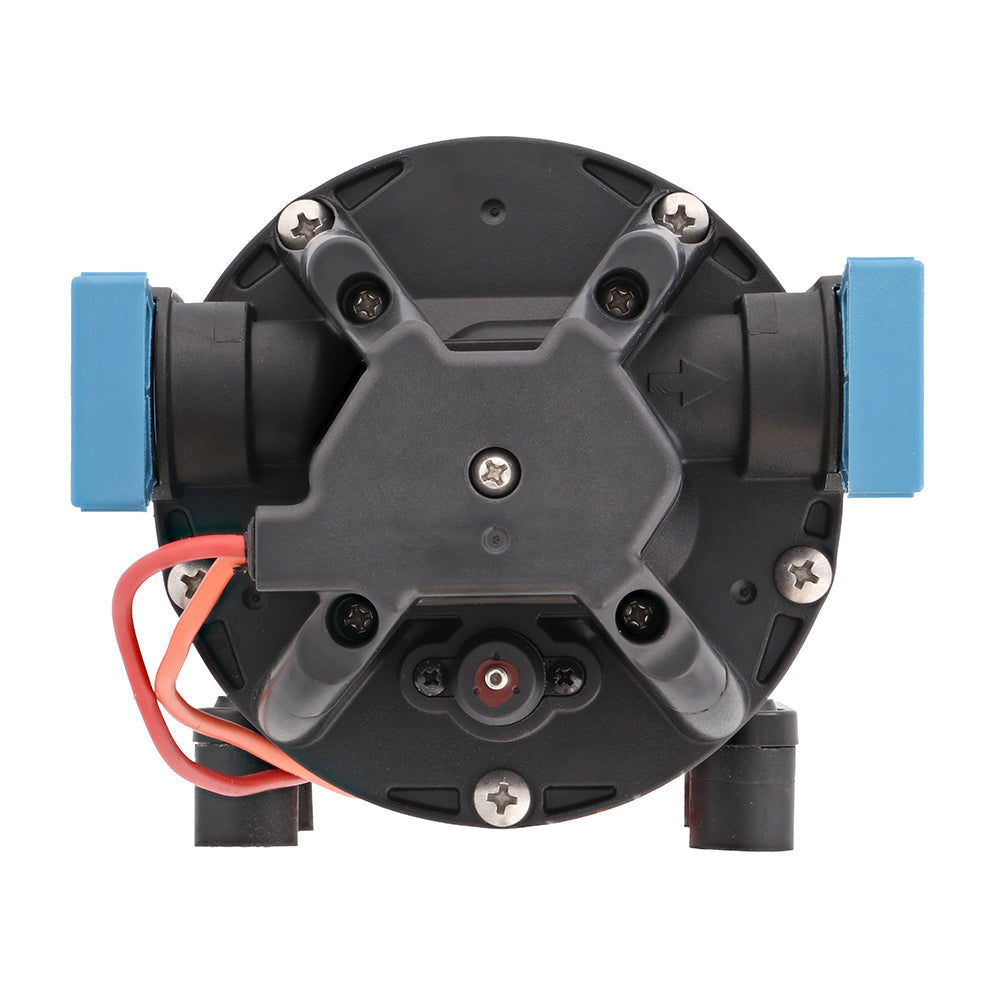

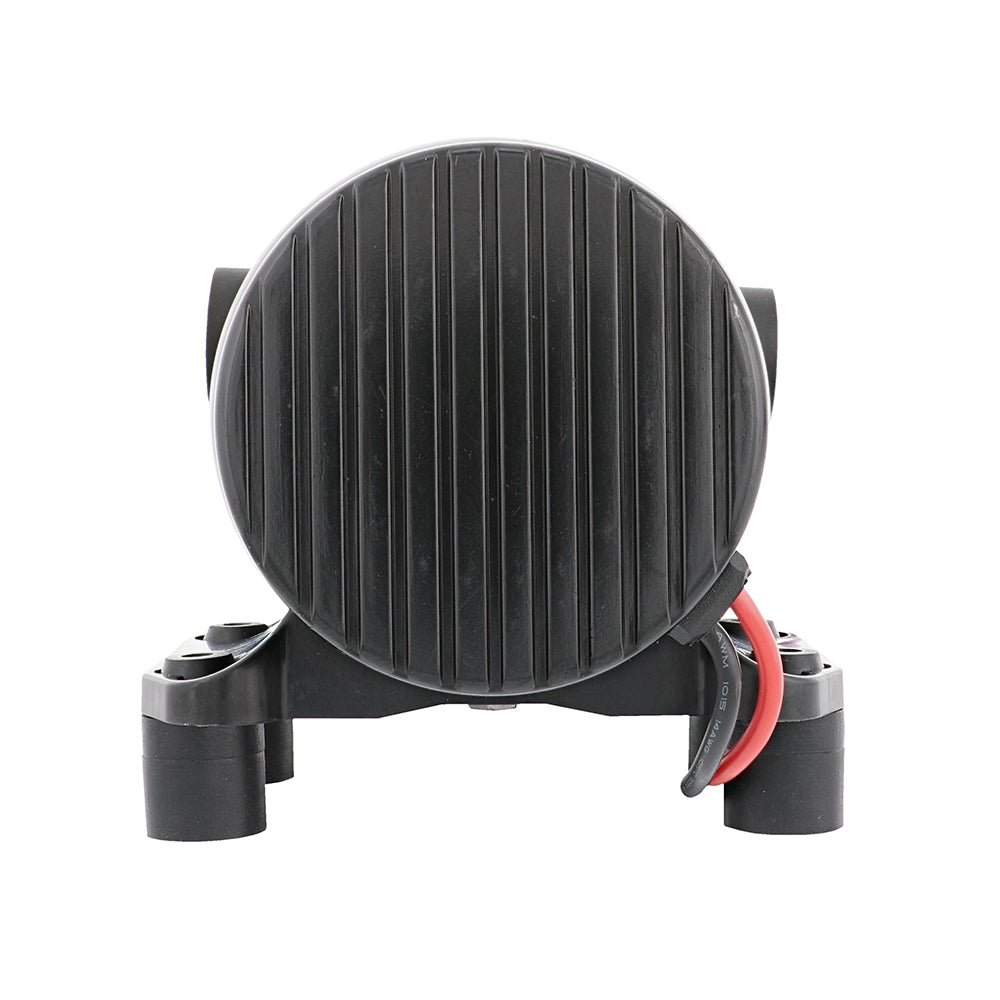

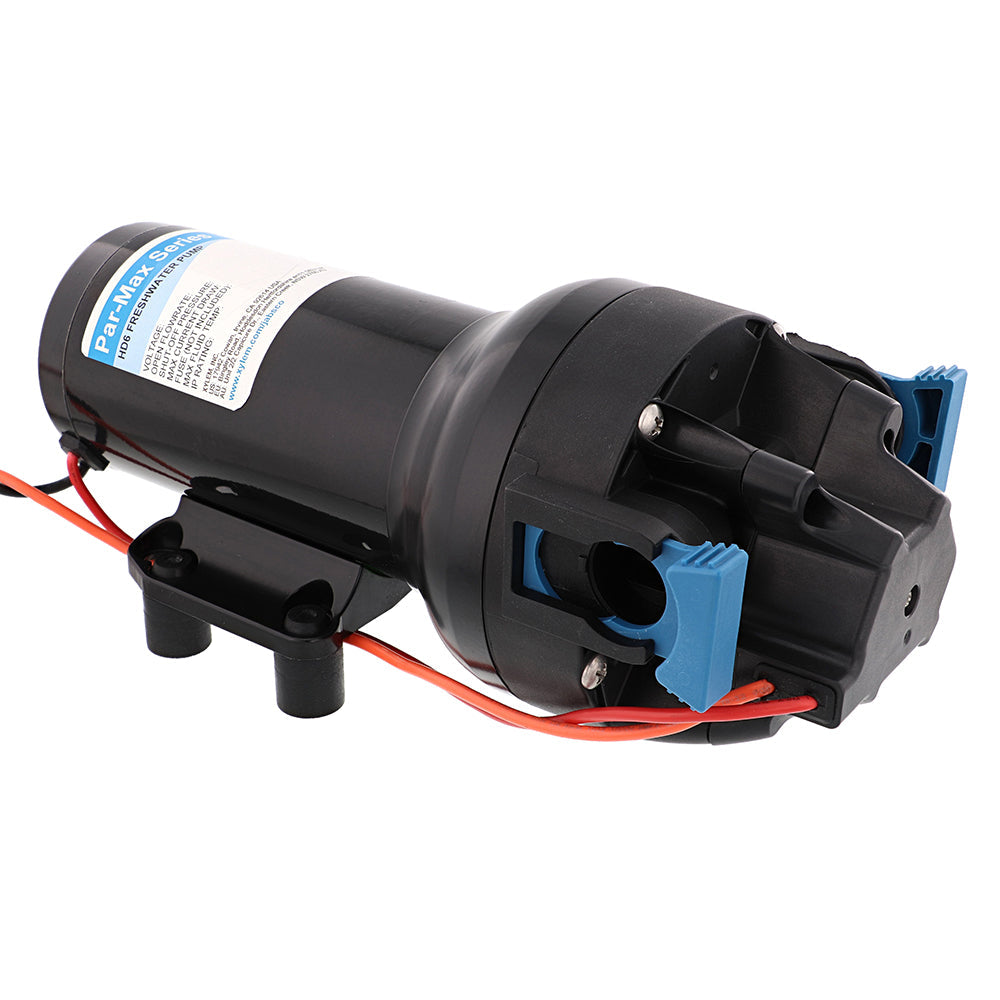

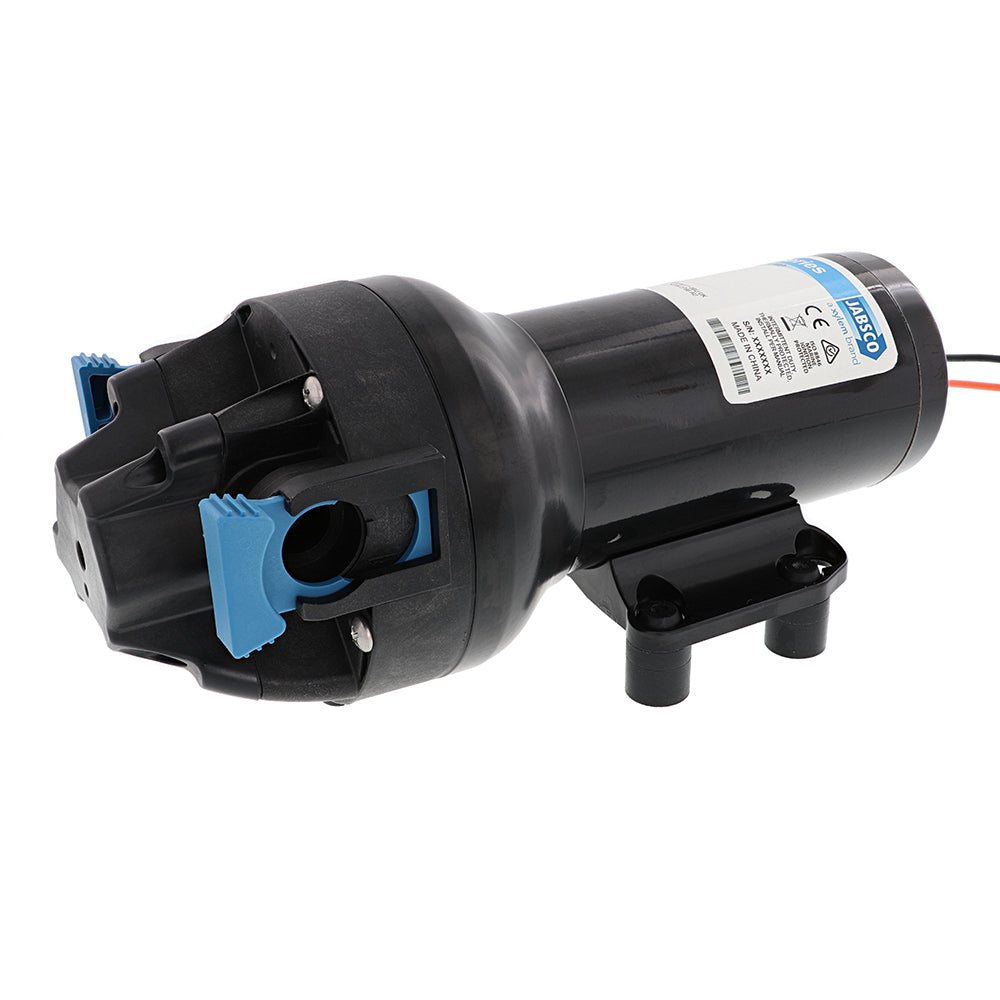

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI

Power up any marine or RV hydraulic system with the Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump — a robust 12V solution that delivers up to 6 GPM at 60 PSI, built to perform under demanding conditions.

rugged reliability for high-demand setups

Designed for longevity and steady pressure, the HD6 features a wider-diameter motor with a powder-coated shell, plus cast aluminum endbells and lower housing to improve pressure capability and lifespan. This heavy-duty construction, combined with efficient, quiet operation, keeps showers, faucets, and appliances functioning smoothly even when multiple outlets demand water.

• High-flow capacity: Up to 6 GPM (23 LPM) at 60 PSI (4.1 bar) for reliable performance across multiple outlets.
• Durable build: HD models use a heavy-duty motor and cast aluminum lower housing for long life at high pressures.
• Protection and corrosion resistance: Plastic housing shields motors from corrosive exposure.
• Smart operation: Integrated, sealed pressure switch enables on-demand, automatic operation.
• Self-priming versatility: Self-priming capability allows flexible installation (7 ft minimum dry priming) and can run dry without damage.
• Easy serviceability: Quick-connect ports simplify installation, servicing, and maintenance, while vibration-dampening feet reduce noise and movement.
• Flow optimization: Integrated bypass module reduces cycling for smoother flow and quieter performance.
• Certifications and protection: CE, ISO8846, RCM certified with IPX6 ingress protection for reliable marine use.

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7 ft (2.13 m)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

Ideal for vessels with 1–3 outlets or as a heavy-duty, all-around water boost pump, the Par-Max HD6 optimizes flow where it matters most. It’s available in configurations up to 6 GPM and 60 PSI to match your exact water system needs, delivering dependable pressure with quiet efficiency.
