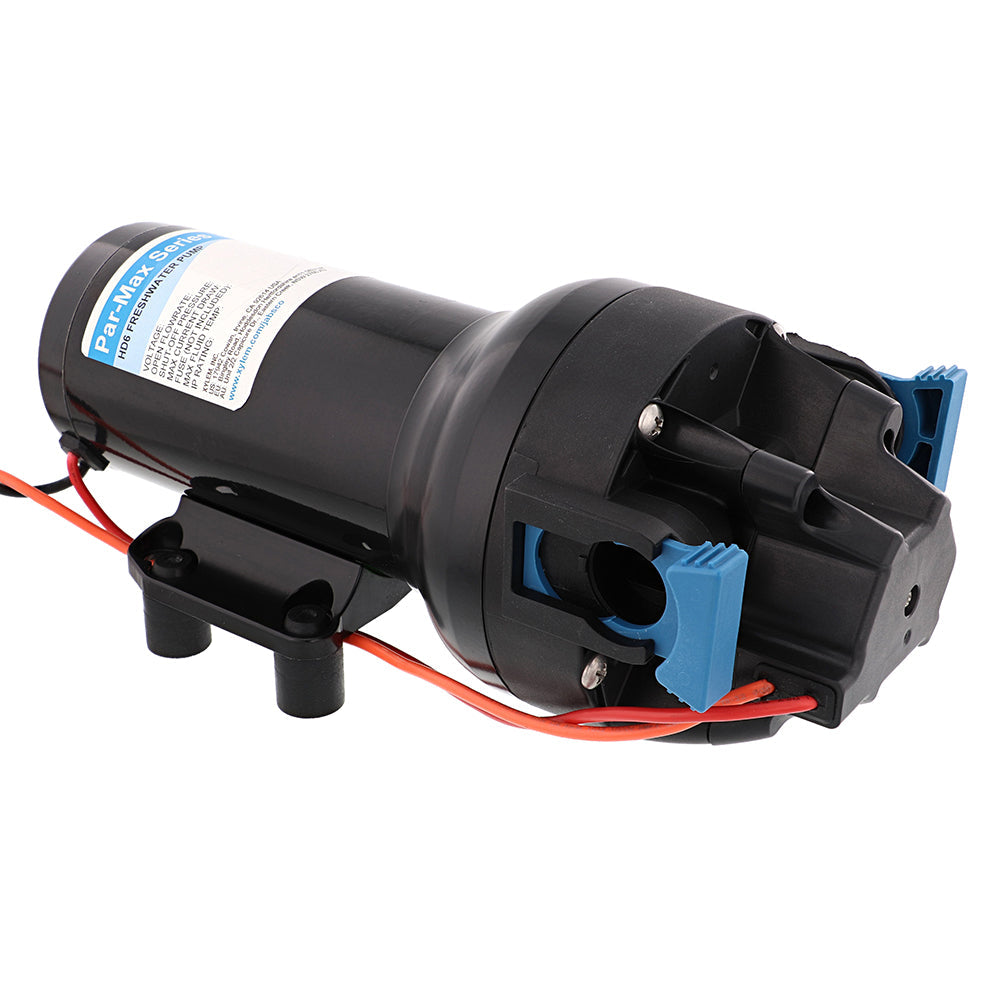

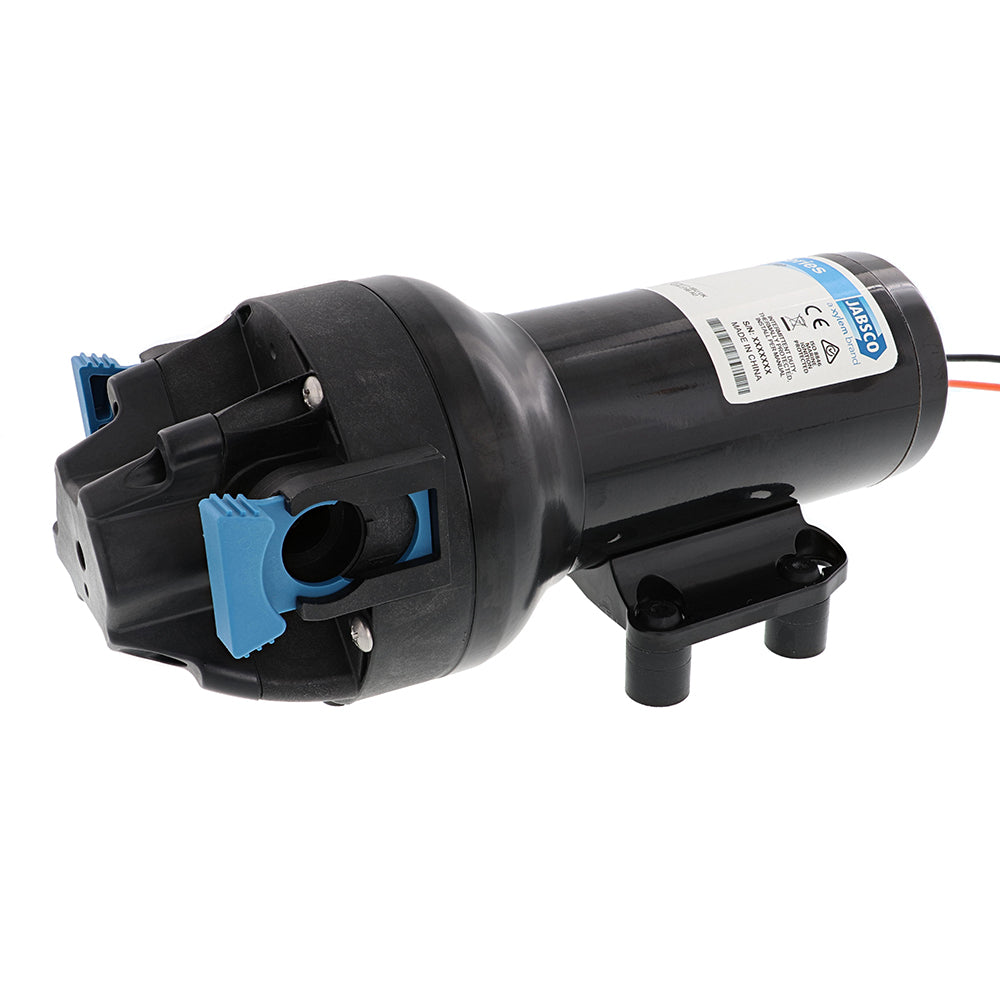

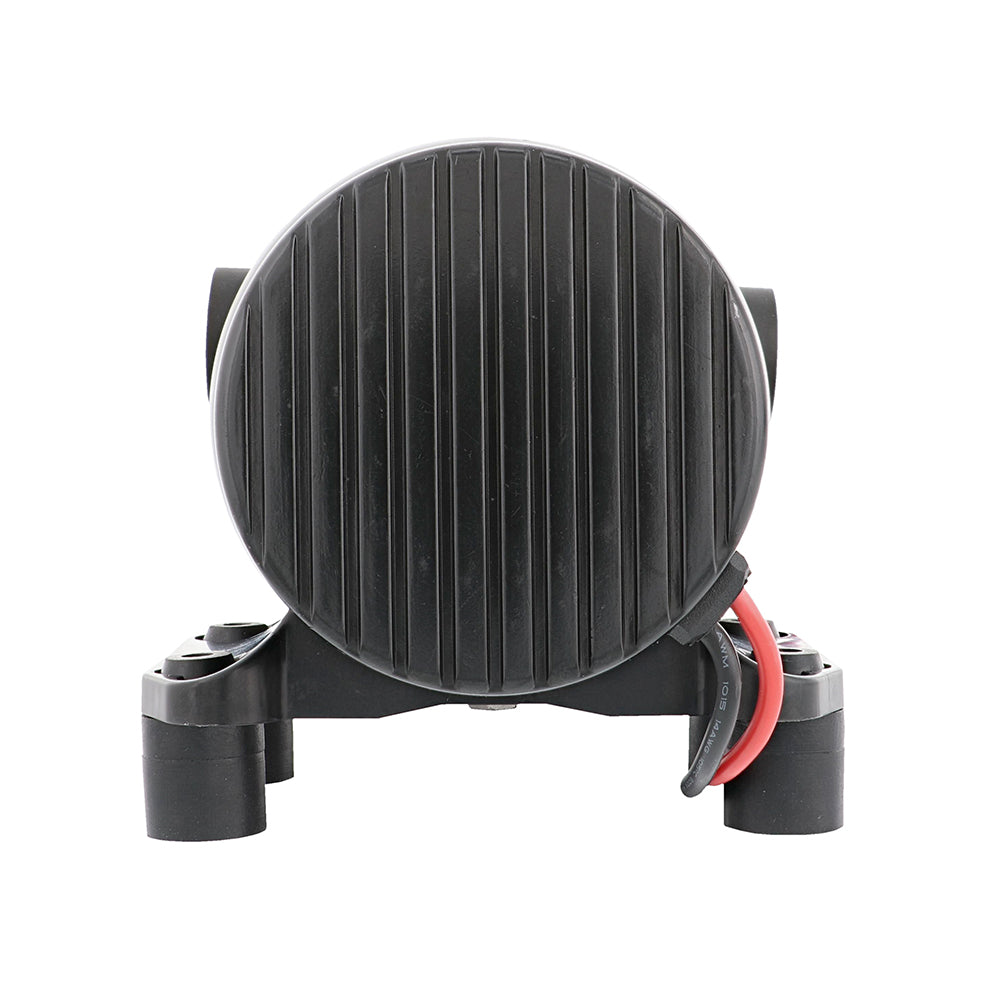

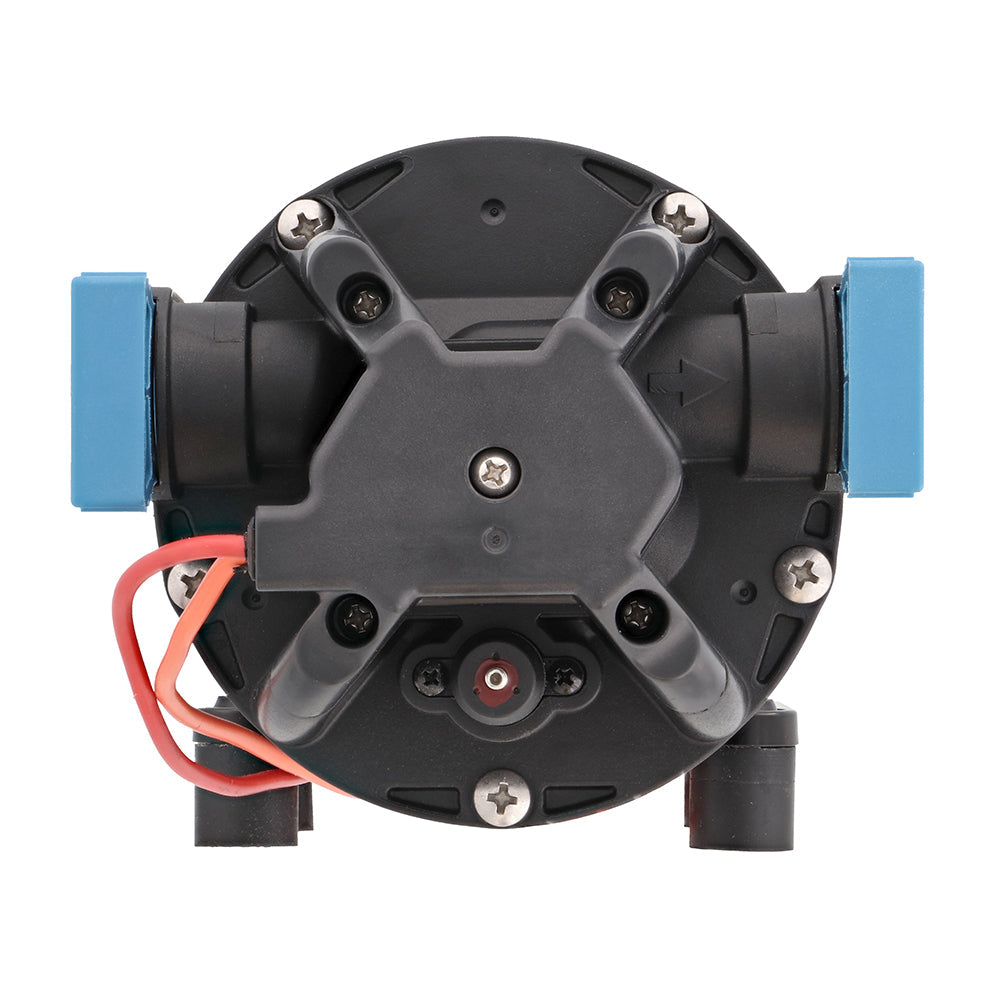

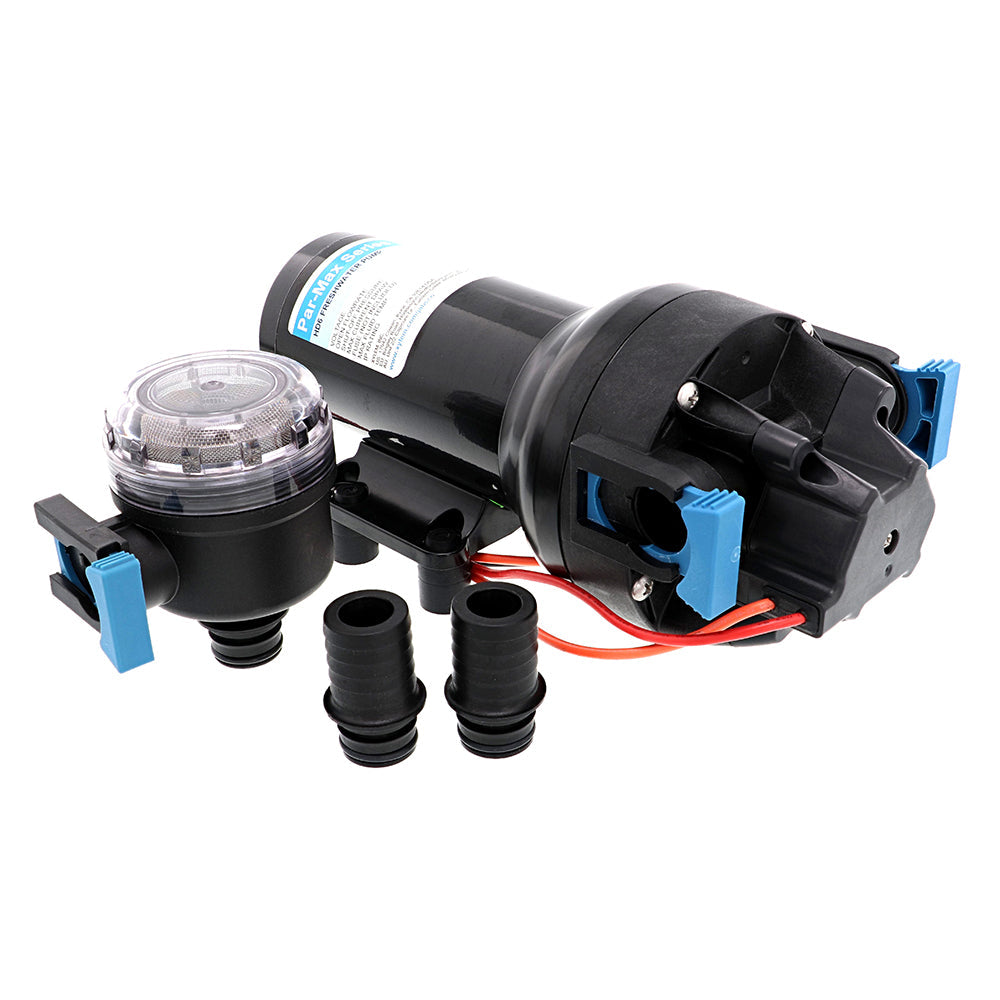

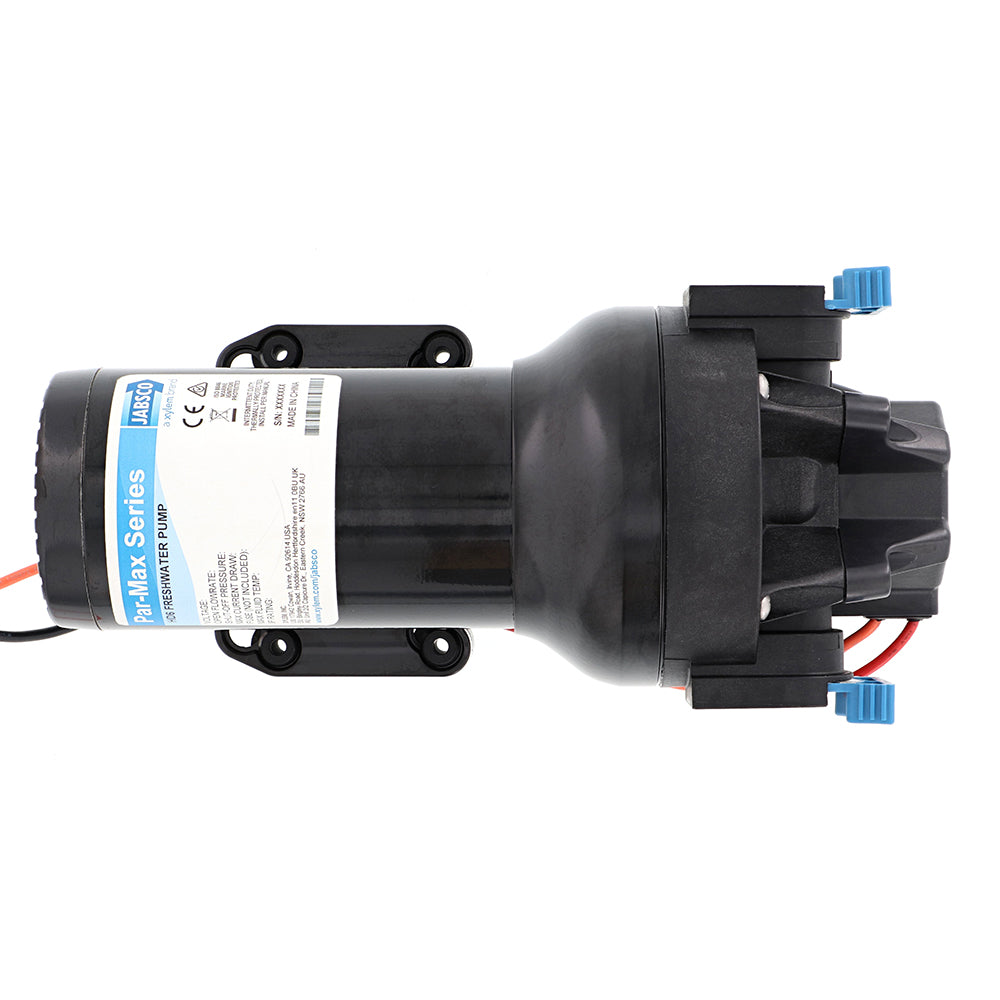

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 60 PSI

Meet the Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump — a rugged 24V DC pump delivering up to 6 GPM at 60 PSI, engineered for marine, RV, and other demanding installations where reliable water pressure matters.

HD (Heavy Duty) models feature a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a robust lower housing to improve pressure capability and life. These configurations offer up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR) of steady flow, while standard models provide solid performance in a compact footprint. A protective plastic housing shields the motor from corrosion, ensuring long-lasting operation in challenging environments.

Key benefits include efficient, quiet operation, an integrated bypass module to smooth flow and reduce cycling, and an on-demand design with an integrated sealed pressure switch. A self-priming design adds installation versatility, and quick-connect ports simplify installation, servicing, and maintenance. Vibration-dampening mounting feet help reduce noise and movement, making this pump ideal for boats, caravans, and other demanding settings.

Features at a glance

• Co-molded diaphragm technology for long life and durability
• HD models with heavy-duty motors and cast aluminum lower housings for longevity at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming capability for versatile installation
• Quick-connect ports for easy installation, servicing, and maintenance
• Vibration-dampening mounting feet
• Integrated bypass module to reduce cycling and provide smoother flow
• Corrosion-protected plastic motor housing

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7 ft min (2.13 m)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6
• Voltage: 24V
• Flow rate: Up to 6 GPM
• Pressure: Up to 60 PSI
• Model/Part: P602J-218S-3A
